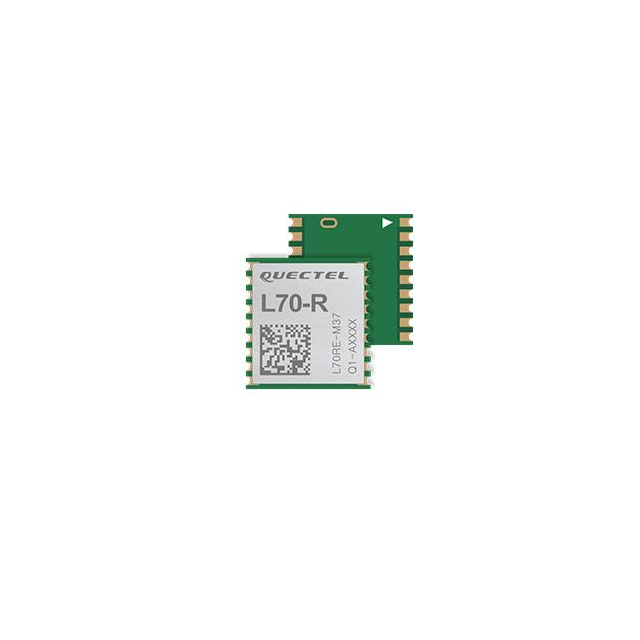

L70RE-M37

Manufacturer :

Quectel

Product Category :

RF Transceiver Modules and Modems

Screening Level :

Industrial

Current - Transmitting :

-

JESD-30 Code :

R-XDMA-N18

RF Family/Standard :

Navigation

Additional Feature :

SEATED HGT-NOM; OPERATES WITH 2.8V TO 4.3V SUPPLY

Power - Output :

-

Serial Interfaces :

UART

Supplier Package :

SMD

Data Rate :

115.2kbps

Maximum Operating Supply Voltage :

4.3 V

Utilized IC / Part :

-

Antenna Type :

Antenna Not Included

Minimum Operating Supply Voltage :

2.8 V

Mounting :

Surface Mount

Package :

Tape and Reel (TR);Cut Tape (CT);Digi-Reel®;

Current - Receiving :

-

Dimensions :

10.1 mm x 9.7 mm x 2.5 mm

Product Status :

Active

Terminal Position :

Dual

Maximum Operating Temperature :

+ 85 C

Frequency :

1575.42 MHz

Telecom IC Type :

TELECOM CIRCUIT

Interface Type :

UART

Operating Supply Voltage :

2.8 V to 4.3 V

Number of Terminals :

18

Surface Mount :

yes

Reach Compliance Code :

Unknown

Terminal Form :

NO LEAD

Width :

9.7 mm

Package Shape :

RECTANGULAR

Packaging :

Cut Tape

Pin Count :

18

Tradename :

Wireless communication module

Temperature Grade :

Industrial

Package / Case :

18-SMD Module

Sensitivity :

-165dBm

Voltage - Supply :

2.8V ~ 4.3V

Protocol :

GPS

Seated Height-Max :

2.5 mm

Modulation :

-

Mounting Type :

Surface Mount

Mounting Style :

SMD/SMT

Operating Temperature :

-40 to 85 °C

Number of Channels :

88 Channel

Number of Functions :

1

Series :

-

Base Product Number :

L70

RoHS :

Details

Minimum Operating Temperature :

- 40 C

Length :

10.1 mm

Memory Size :

-
