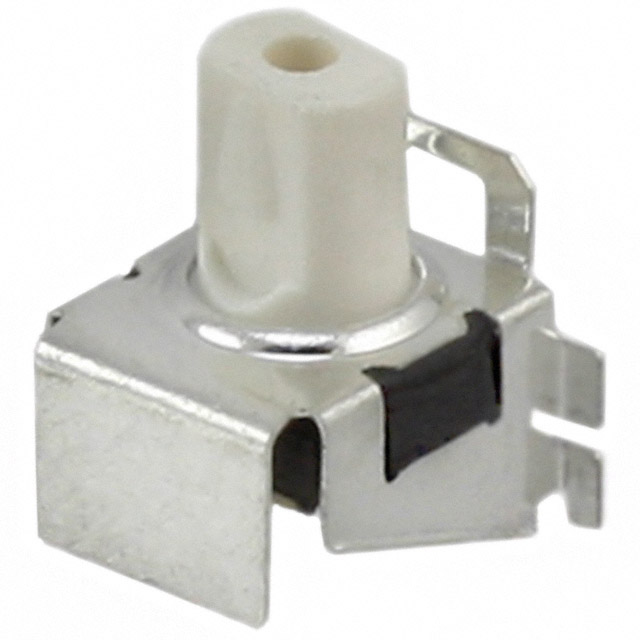

KT11S2SA2M34LFS

Manufacturer :

C&K

Product Category :

Packaging :

Tape and Reel (TR)

Switch Function :

Off-Mom

Actuator Length :

4.96mm

Feature :

Sealed

Operating Force :

300gf

Max Voltage Rating (AC) :

32V

Actuator Type :

Plunger for Cap

Outline :

7.77mm x 6.41mm

Series :

KT

Mechanical Life :

100,000 Cycles

Throw Configuration :

SPST

RoHS Status :

ROHS3 Compliant

Mount :

Surface Mount

Contact Rating @ Voltage :

1VA @ 32VAC/DC

Ingress Protection :

IP57 - Dust Protected, Waterproof

Max Voltage Rating (DC) :

32V

Power Rating :

1W

Contact Plating :

Silver

Voltage - Rated AC :

32V

Voltage - Rated DC :

32V

Termination :

Gull wing

Mounting Type :

Surface Mount, Right Angle

Circuit :

SPST-NO

Operating Temperature :

-40°C~90°C

Illumination Type :

Non-Illuminated

Published :

2009

Electrical Life :

100000 cycles

Actuator Orientation :

Side Actuated

Illumination :

Non-Illuminated

Length :

7.77mm

Termination Style :

Gull wing

Factory Lead Time :

9 Weeks

Orientation :

RIGHT ANGLE

Contact Material :

Silver

Depth :

10.53mm

Min Operating Temperature :

-40°C

Lead Free :

Lead Free

Max Operating Temperature :

90°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Ratings :

IP57, Waterproof
