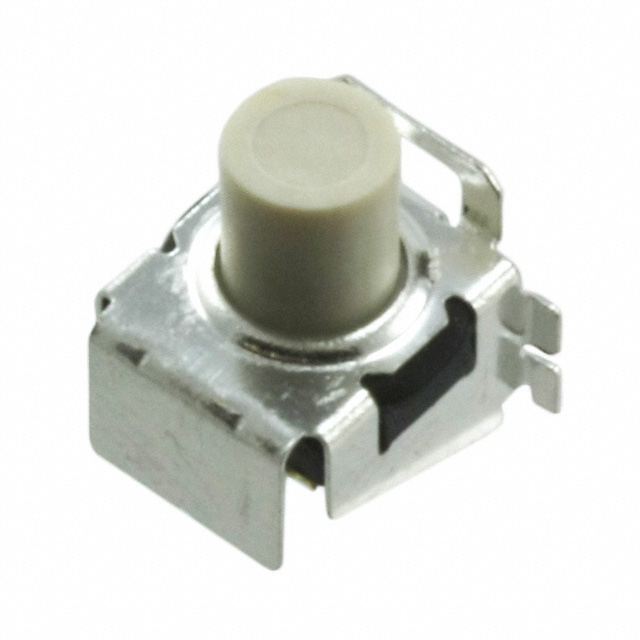

KT11P4SA2M34LFS

Manufacturer :

C&K

Product Category :

Termination Style :

Gull wing

Mounting Type :

Surface Mount, Right Angle

Mechanical Life :

100,000 Cycles

Mount :

Surface Mount

Depth :

8.34mm

Radiation Hardening :

No

Actuator Type :

Standard

Min Operating Temperature :

-40°C

Contact Plating :

Silver

Factory Lead Time :

9 Weeks

Power Rating :

1W

Max Operating Temperature :

90°C

Published :

2009

Series :

KT

Feature :

Sealed

Illumination Type :

Non-Illuminated

Actuator Length :

3.96mm

Circuit :

SPST-NO

Electrical Life :

100000 cycles

Actuator Material :

Polyamide (PA), Nylon

Contact Rating @ Voltage :

1VA @ 32VAC/DC

Max Voltage Rating (DC) :

32V

Operating Force :

300gf

Outline :

7.77mm x 6.41mm

Termination :

Gull wing

Packaging :

Tape and Reel (TR)

Throw Configuration :

SPST

Ratings :

IP57, Waterproof

RoHS Status :

ROHS3 Compliant

Length :

7.77mm

Contact Material :

Silver

Ingress Protection :

IP57 - Dust Protected, Waterproof

Switch Function :

Off-Mom

Max Voltage Rating (AC) :

32V

Operating Temperature :

-40°C~90°C

Voltage - Rated AC :

32V

Illumination :

Non-Illuminated

Actuator Orientation :

Side Actuated

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

RIGHT ANGLE

Voltage - Rated DC :

32V
