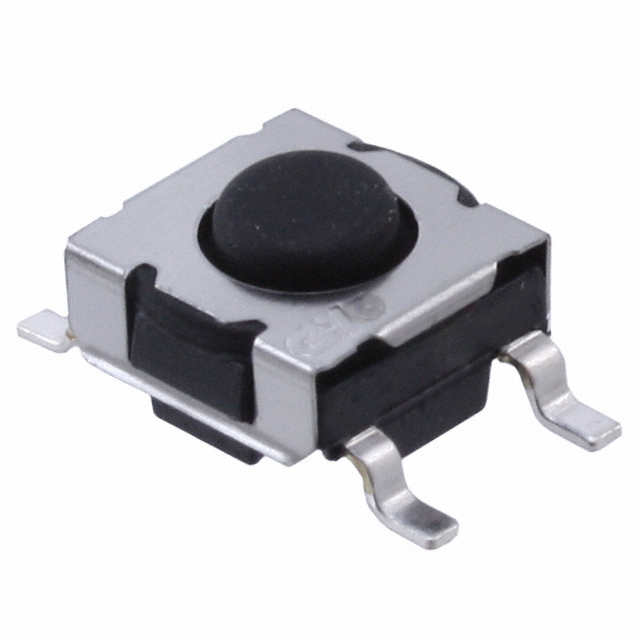

KT11B1SM34LFS

Manufacturer :

C&K

Product Category :

Feature :

Sealed

Power Rating :

1W

Factory Lead Time :

9 Weeks

RoHS Status :

ROHS3 Compliant

Published :

2006

Termination :

Gull wing

Illumination :

Non-Illuminated

Max Voltage Rating (DC) :

32V

Contact Material :

Silver

Mount :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-40°C~90°C

Voltage - Rated AC :

32V

Contact Rating @ Voltage :

1VA @ 32VAC/DC

Actuator Orientation :

Top Actuated

Actuator Height off PCB, Vertical :

3.64mm

Switch Function :

Off-Mom

Packaging :

Tape and Reel (TR)

Operating Force :

300gf

Termination Style :

Gull wing

Orientation :

RIGHT ANGLE

Actuator Type :

Standard

Mechanical Life :

100,000 Cycles

Max Voltage Rating (AC) :

32V

Ratings :

IP57, Waterproof

Voltage - Rated DC :

32V

Actuator Length :

640μm

Series :

KT

Electrical Life :

100000 cycles

Length :

7.57mm

Circuit :

SPST-NO

Radiation Hardening :

No

Actuator Material :

Rubber

REACH SVHC :

No SVHC

Throw Configuration :

SPST

Outline :

6.38mm x 6.22mm

Ingress Protection :

IP57 - Dust Protected, Waterproof

Mounting Type :

Surface Mount

Lead Free :

Lead Free
