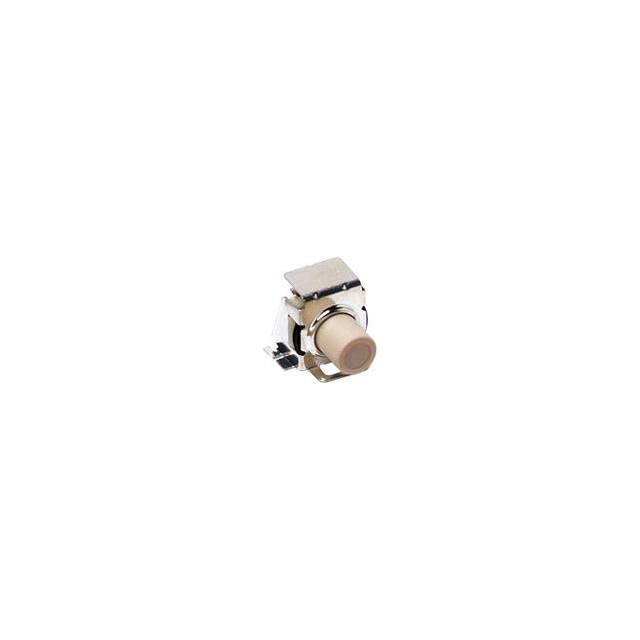

KT11B1SA1M34LFS

Manufacturer :

C&K

Product Category :

Switch Function :

Off-Mom

Throw Configuration :

SPST

Package / Case :

SMD/SMT

Factory Lead Time :

9 Weeks

Max Voltage Rating (AC) :

32V

Min Operating Temperature :

-40°C

Packaging :

Bulk

Illumination :

Non-Illuminated

Outline :

7.77mm x 4.38mm

Actuator Material :

Rubber

Actuator Type :

Standard

Voltage - Rated DC :

32V

Termination Style :

Gull wing

Actuator Orientation :

Side Actuated

Contact Plating :

Silver

Mounting Type :

Surface Mount, Right Angle

Ingress Protection :

IP57 - Dust Protected, Waterproof

Operating Force :

300gf

RoHS Status :

ROHS3 Compliant

Radiation Hardening :

No

Circuit :

SPST-NO

Illumination Type :

Non-Illuminated

Series :

KT

Actuator Length :

640μm

Max Voltage Rating (DC) :

32V

Electrical Life :

100000 cycles

Published :

2012

Max Operating Temperature :

90°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mechanical Life :

100,000 Cycles

Orientation :

RIGHT ANGLE

Operating Temperature :

-40°C~90°C

Power Rating :

1W

Mount :

Surface Mount

Voltage - Rated AC :

32V

Termination :

Gull wing

Ratings :

IP57, Waterproof

Feature :

Sealed

Contact Rating @ Voltage :

1VA @ 32VAC/DC
