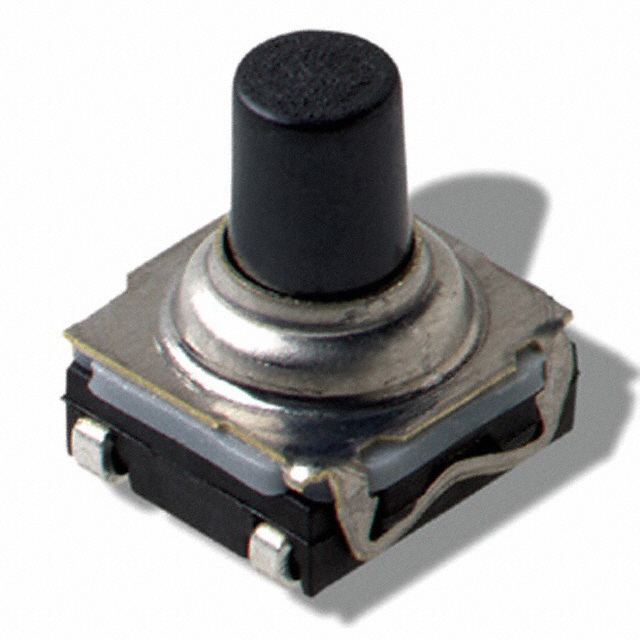

KSC621J LFS

Manufacturer :

C&K

Product Category :

Additional Feature :

RoHS Compliant

Switch Action :

MOMENTARY-TACTILE

Contact Voltage(DC)-Max :

32 V

End Contact Material :

Silver

Switch Function :

SPST

ECCN Code :

EAR99

Contact Resistance :

0.1 mΩ

JESD-609 Code :

e4

Terminal Finish :

Silver (Ag)

Actuator Type :

HARD TYPE

Insulation Resistance :

10000000 Ω

Body Length or Diameter :

6.2 mm

Number of Switches :

1

HTS Code :

8536.50.90.40

Center Contact Plating :

Silver

Contact Current(DC)-Max :

0.05 A

End Contact Plating :

Silver

Pbfree Code :

yes

Sealing :

IP67

Packing Method :

Tape and Reel

Body Height :

2.5 mm

Actuator Travel :

0.508 mm

Reach Compliance Code :

Compliant

Surface Mount :

No

Factory Lead Time :

10 Weeks

Manufacturer :

CandK

Circuit Configuration :

1x1

Contact Bounce Time-Max :

1 ms

Terminal Material :

Silver

Center Contact Material :

Silver

Mounting Feature :

SURFACE MOUNT-STRAIGHT

Operating Force-Max :

1.65 N

Electrical Life :

500000 Cycle(s)

Switch Type :

KEYPAD SWITCH

Termination Type :

Solder

Body Breadth :

6.2 mm

Actuator Length :

0.189 inch
