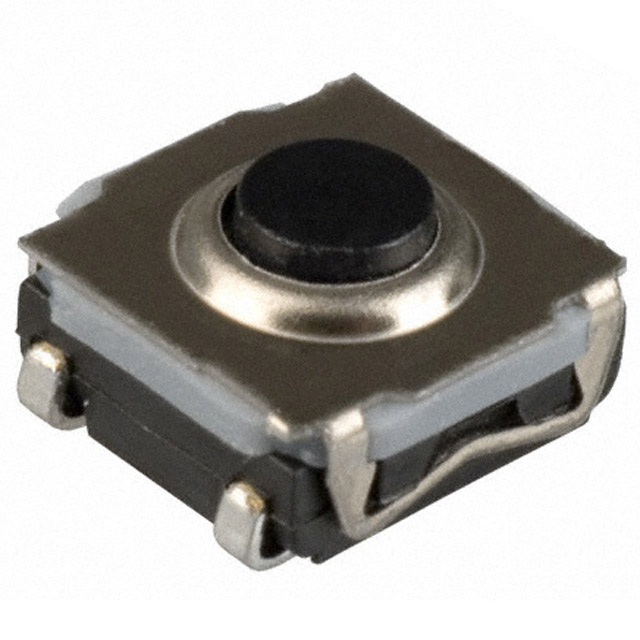

KSC321JLFS

Manufacturer :

C&K

Product Category :

Width :

6.2mm

Series :

KSC

Termination :

J-Bend, SMD/SMT

Lead Free :

Lead Free

Illumination :

Non-Illuminated

Ratings :

Dust Tight, IP67, Waterproof

Factory Lead Time :

16 Weeks

Mounting Type :

Surface Mount

Height :

3.5mm

Actuator Orientation :

Top Actuated

Depth :

6.8mm

Number of Positions :

2

Published :

2000

Packaging :

Tape and Reel (TR)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Actuator Height off PCB, Vertical :

3.50mm

Contact Material :

Silver

Current Rating :

50mA

Ingress Protection :

IP67 - Dust Tight, Waterproof

Max Operating Temperature :

85°C

Max Current Rating :

50mA

Length :

6.2mm

Orientation :

Straight

RoHS Status :

ROHS3 Compliant

Power Rating :

1W

Contact Rating @ Voltage :

0.05A @ 32VDC

Operating Force :

200gf

Circuit :

SPST-NO

Max Voltage Rating (DC) :

32V

REACH SVHC :

No SVHC

Mechanical Life :

300,000 Cycles

Throw Configuration :

SPST

Outline :

6.20mm x 6.20mm

Switch Function :

Off-Mom

Mount :

Sealed, Surface Mount

Switch Travel :

0.20mm

Actuator Type :

Standard

Termination Style :

J Lead

Contact Current Rating :

50mA

Operating Temperature :

-40°C~85°C

Contact Plating :

Silver

Voltage - Rated DC :

32V

Illumination Type :

Illuminated, Non-Illuminated

Actuator Length :

870μm

Radiation Hardening :

No

Min Operating Temperature :

-40°C
