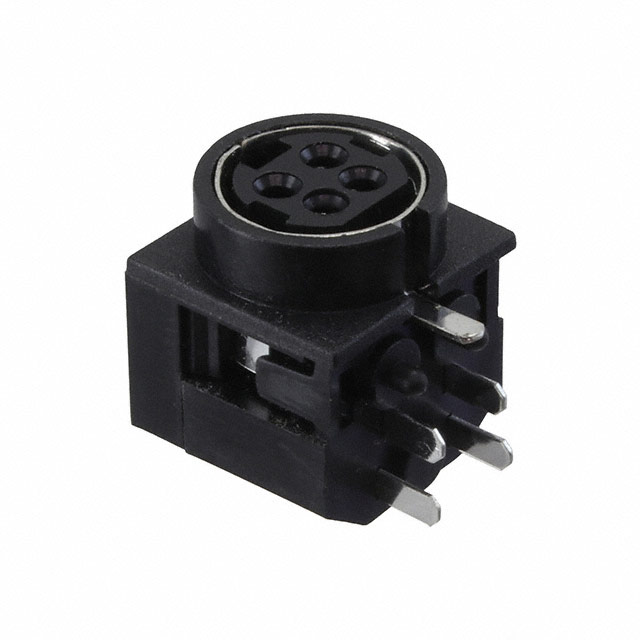

KPJX-4S

Manufacturer :

Kycon

Product Category :

Circular Connector Assemblies

Current Rating :

7.5A

DIN Conformance :

No

Number of Positions :

4 (Power)

Contact Gender :

FEMALE

Length :

17mm

Radiation Hardening :

No

Feature :

Board Guide

Material Flammability Rating :

UL94 V-0

Insulation Resistance :

50mOhm

RoHS Status :

RoHS Compliant

Voltage - Rated DC :

20V

Height :

15.35mm

Mounting Type :

Through Hole, Right Angle

ECCN Code :

EAR99

Color :

Black

Contact Material :

Brass

Option :

GENERAL PURPOSE

Insert Material :

Polybutylene Terephthalate (PBT)

Factory Lead Time :

20 Weeks

Number of Contacts :

4

Connector Type :

Jack, Female Sockets

Voltage - Rated :

48VDC

Packaging :

Tray

Applications :

Digital, Power

Contact Finish - Mating :

Tin

Mount :

Through Hole

Shell Material :

Polybutylene Terephthalate (PBT)

Series :

KPJX

MIL Conformance :

No

Width :

15mm

Shielding :

Unshielded

Flammability Rating :

UL94 V-0

Termination :

Solder

Orientation :

Keyed

IEC Conformance :

No

Operating Temperature :

-40°C~75°C

Housing Material :

PBT

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gender :

Receptacle

JESD-609 Code :

e3

Fastening Type :

Snap-In
