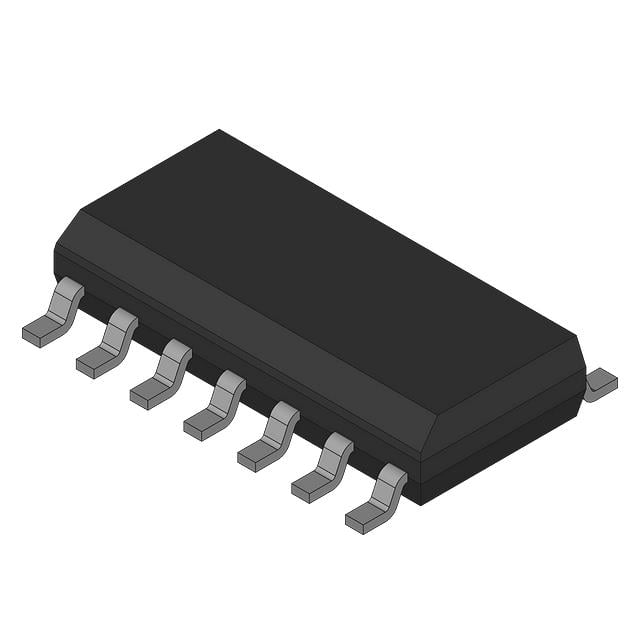

KA339ADTF

Manufacturer :

onsemi

Product Category :

Comparators

ECCN Code :

EAR99

Output Current :

18mA

Terminal Position :

Dual

Power Supplies :

5V

Max Power Dissipation :

570mW

Power Dissipation :

570mW

Voltage - Supply, Single/Dual (±) :

2V~36V ±1V~18V

RoHS Status :

ROHS3 Compliant

Mount :

Surface Mount

Number of Pins :

14

Lifecycle Status :

LIFETIME (Last Updated: 1 day ago)

Width :

3.9mm

Max Input Current :

250nA

Supply Voltage :

5V

Operating Temperature :

0°C~70°C

Type :

GENERAL PURPOSE

Published :

2015

Weight :

218.3mg

Base Part Number :

KA339

Height Seated (Max) :

1.75mm

Quiescent Current :

2.5mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Nominal Supply Current :

1.1mA

Response Time :

1.3 μs

Pbfree Code :

yes

Factory Lead Time :

4 Weeks

Length :

8.65mm

Terminal Pitch :

1.27mm

Number of Elements :

4

Output Current per Channel :

18mA

Terminal Finish :

Nickel/Gold/Palladium/Silver (Ni/Au/Pd/Ag)

Number of Terminations :

14

Voltage - Input Offset (Max) :

2mV @ 5V

Number of Functions :

4

Output Type :

DTL, MOS, Open-Collector, TTL

Lead Free :

Lead Free

Max Supply Current :

2mA

Package / Case :

14-SOIC (0.154, 3.90mm Width)

Input Bias Current :

250nA

Current - Output (Typ) :

18mA @ 5V

Voltage Gain :

106.02dB

Terminal Form :

Gull wing

Input Offset Voltage (Vos) :

2mV

Mounting Type :

Surface Mount

Current - Input Bias (Max) :

0.25μA @ 5V

Packaging :

Tape and Reel (TR)

Operating Supply Voltage :

36V

Radiation Hardening :

No
