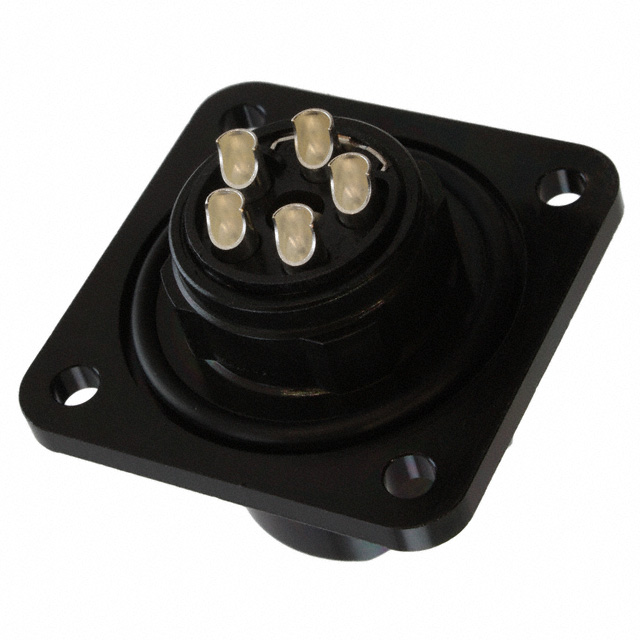

JN2AW05FH1
Or copy the link below:
- Mfr.Part #
- JN2AW05FH1
- Manufacturer
- JAE Electronics
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT FMALE 5P SOLDER CUP
- Stock
- 41,352
- In Stock ：
- 41,352
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- JAE Electronics
- Product Category :
- Circular Connector Assemblies
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 5 (4 Power + PE)
- Applications :
- Industrial
- Shell Size - Insert :
- W
- Shell Material :
- ZINC ALLOY
- Contact Finish - Mating :
- Silver
- Feature :
- Ground Lug
- Operating Temperature :
- -20°C~100°C
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Insert Material :
- Synthetic Resin
- Packaging :
- Bulk
- Factory Lead Time :
- 12 Weeks
- Voltage - Rated :
- 400VAC
- Shell Finish :
- Zinc
- Color :
- Black
- RoHS Status :
- RoHS Compliant
- Termination :
- Solder Cup
- Mounting Type :
- Panel Mount
- Number of Contacts :
- 5
- Contact Material :
- COPPER ALLOY
- Mounting Feature :
- Flange
- Orientation :
- N (Normal)
- Connector Type :
- Receptacle, Female Sockets
- Current Rating :
- 13A
- Published :
- 2008
- Series :
- JN2W
- Mount :
- Flanges, Panel
- Ratings :
- Dust Tight, IP67, Waterproof
- Fastening Type :
- Push-Twist
- Datasheets
- JN2AW05FH1
Receptacle, Female Sockets Zinc Alloy Panel Mount 5 (4 Power + PE) Positions Solder Cup Silver Zinc Bulk N (Normal) Push-Twist
JN2AW05FH1 Overview
This product is packaged in a Receptacle, Female Sockets box.Panel Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the JN2W Series.In many ways, Ground Lug makes it more powerful.By Flanges, Panel, the part is mounted.Operating temperature is set to -20°C~100°C.
JN2AW05FH1 Features
JN2W series
JN2AW05FH1 Applications
There are a lot of JAE Electronics
JN2AW05FH1 Circular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
