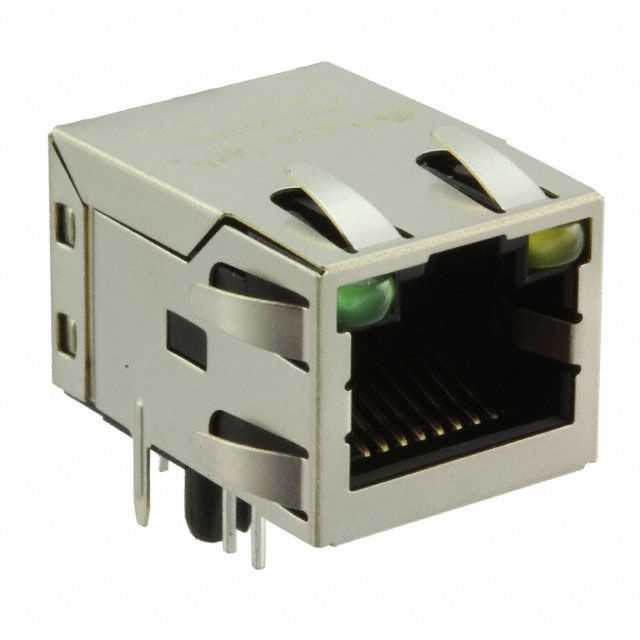

JD1-0004NL

Manufacturer :

Pulse Electronics

Product Category :

Modular Connector Jacks With Magnetics

Mount :

Through Hole

Contact Material :

COPPER ALLOY

Configuration :

1x1

Application :

10/100 Base-TX

Type :

RJ-45

Contact Plating :

Gold Over Nickel

Housing Material :

Thermoplastic

Termination Style :

Solder

Positions Loaded :

8

Gender :

F

Shielding :

Shielded, EMI Finger

Tab Direction :

UP

Features :

Board Lock

Mounting Angle :

RIGHT ANGLE

Published :

2015

Pbfree Code :

yes

Pin Count :

12

Body Orientation :

RIGHT ANGLE

Termination Method :

Solder

Connector Type :

RJ45

Product Length (mm) :

15.75(mm)

Number of Cores per Jack :

4

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Rows :

1

Factory Lead Time :

13 Weeks

USOC Codes :

RJ45

Mounting Style :

Through Hole

Package :

Tray

Operating Temp Range :

0C to 70C

Packaging :

Tray

Series :

PULSEJACK™ JD1

Number of Contacts :

8 POS

Shield Material :

Brass

Product :

Connectors

RoHS Status :

RoHS Compliant

Orientation :

90° Angle (Right)

Mounting Type :

Through Hole

Subcategory :

Modular Connectors / Ethernet Connectors

Number of Terminals :

12

Product Length :

15.75 mm

Product Status :

Active

Feature :

Board Lock

Contact Finish Thickness :

6.00μin 0.152μm

Operating Temperature :

0°C~70°C

Color :

Green, Yellow

Product Height (mm) :

13.8(mm)

Family :

JD1

Maximum Operating Temperature :

+ 70 C

Number of Ports :

1

Termination :

Solder

Minimum Operating Temperature :

0 C

Pitch (mm) :

1.27(mm)

Height Above Board :

0.543 13.80mm

Applications :

10/100 Base-TX, AutoMDIX

Product Type :

Modular Connectors / Ethernet Connectors

Pitch :

1.2700 mm

LED Color :

Green - Yellow

Base/Housing Material :

Thermoplastic

Contact Finish :

Gold

Product Depth (mm) :

21.9(mm)

Mounting :

Through Hole
