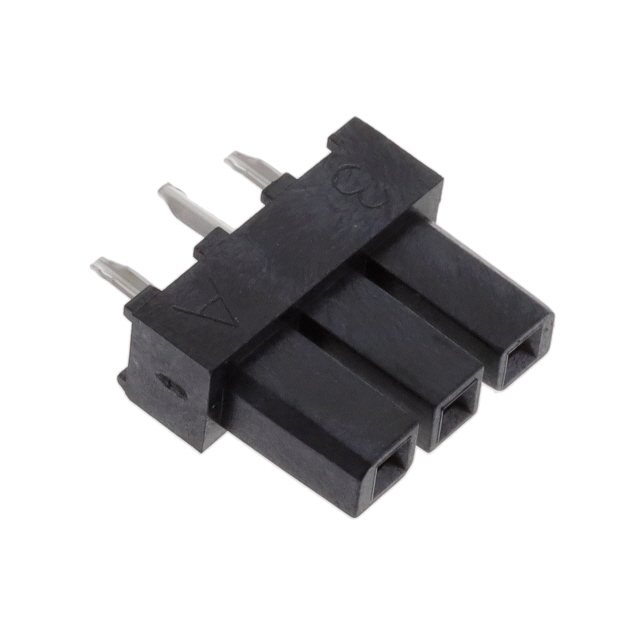

IPBS-103-01-T-S
Or copy the link below:
- Mfr.Part #
- IPBS-103-01-T-S
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- .165" POWER MATE ISOLATED POWER
- Stock
- 960
- In Stock ：
- 960
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Receptacles, Female Sockets
- IEC Conformance :
- No
- MIL Conformance :
- No
- Mounting Type :
- Through Hole
- Orientation :
- Straight
- Mount :
- Through Hole
- Gender :
- Male
- Radiation Hardening :
- No
- Mixed Contacts :
- No
- Contact Shape :
- Square
- Contact Length - Post :
- 0.155 3.94mm
- Insulation Height :
- 0.480 12.20mm
- Empty Shell :
- No
- Packaging :
- Tube
- ECCN Code :
- EAR99
- Connector Type :
- Header
- Series :
- Power Mate® IPBS
- Insulation Color :
- Black
- Operating Temperature :
- -55°C~105°C
- Number of Rows :
- 1
- Pbfree Code :
- yes
- Additional Feature :
- POWER MATE, POLARIZED, SHROUDED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 3
- Style :
- Board to Board
- Contact Type :
- Female Socket
- Fastening Type :
- Push-Pull
- REACH SVHC :
- No SVHC
- JESD-609 Code :
- e3
- Number of Positions Loaded :
- All
- Contact Material :
- Phosphor Bronze
- Pitch - Mating :
- 0.165 4.20mm
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- RoHS Status :
- ROHS3 Compliant
- Voltage - Rated :
- 400VAC 565VDC
- Factory Lead Time :
- 3 Weeks
- Contact Finish - Mating :
- Tin
- Termination :
- Solder
- Published :
- 2012
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Datasheets
- IPBS-103-01-T-S
IPBS-103-01-T-S Documents
1 Rows Header Solder Phosphor Bronze Through Hole Tube Tin Liquid Crystal Polymer (LCP) 3 Positions Female Socket
IPBS-103-01-T-S Overview
Packaging is Header.Through Hole is the mounting type.Packaging for the product is carried out via a Tube case.As a product of the Power Mate® IPBS Series, it can be found in this category.There are also other features such as POWER MATE, POLARIZED, SHROUDED, to name only a few.In this case, Through Hole mounts the part.The device is operating at -55°C~105°C Operating Temperature.
IPBS-103-01-T-S Features
Power Mate® IPBS series
IPBS-103-01-T-S Applications
There are a lot of Samtec Inc.
IPBS-103-01-T-S Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
