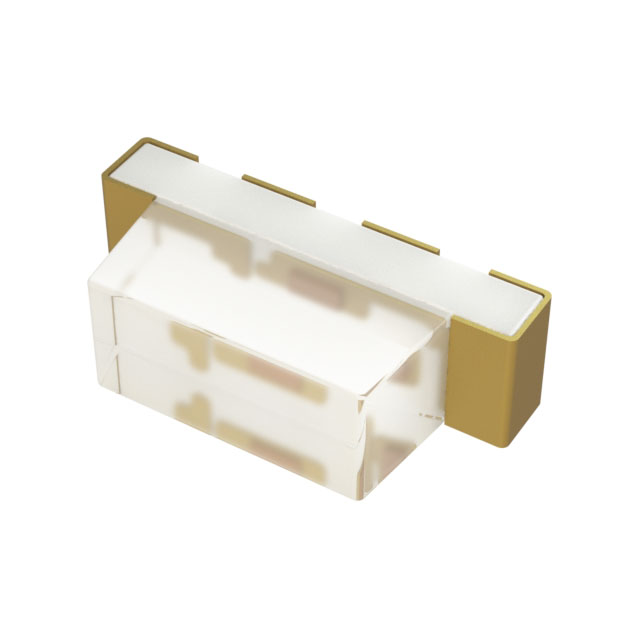

IN-S63DBS5R5UW

Manufacturer :

Inolux

Product Category :

Millicandela Rating :

35mcd Red, 200mcd White

Current - Test :

5mA Red, 5mA White

Brand :

Inolux

Package :

Digi-Reel?

RoHS :

Details

Lens Color :

-

Mounting Style :

SMD/SMT

Length :

1.6 mm

Width :

0.8 mm

Supplier Device Package :

0603

Lens Size :

1.20mm x 0.50mm

Mounting Type :

Surface Mount, Right Angle

Vf - Forward Voltage :

1.9 V, 3 V

Power Rating :

65 mW, 90 mW

Series :

-

Wavelength - Peak :

630nm

Luminous Intensity :

35 mcd, 200 mcd

Color :

Red, White

Product Type :

LED - Standard

Product Category :

Standard LEDs - SMD

Product Status :

Active

Orientation :

Side View

Maximum Operating Temperature :

+ 85 C

Size / Dimension :

1.60mm L x 0.80mm W

Features :

-

Minimum Operating Temperature :

- 30 C

Voltage - Forward (Vf) (Typ) :

1.9V Red, 3V White

Wavelength - Dominant :

622nm

Product :

RGBW LEDs

Package / Case :

0603 (1608 Metric)

Subcategory :

LEDs

Lens Style :

Rectangle with Flat Top

Height (Max) :

0.60mm

Manufacturer :

Inolux

Packaging :

MouseReel

Configuration :

Independent

Viewing Angle :

120°

Lens Transparency :

Clear

Height :

0.5 mm

Illumination Color :

Red, White

Lens Dimensions :

1.2 mm x 0.5 mm
