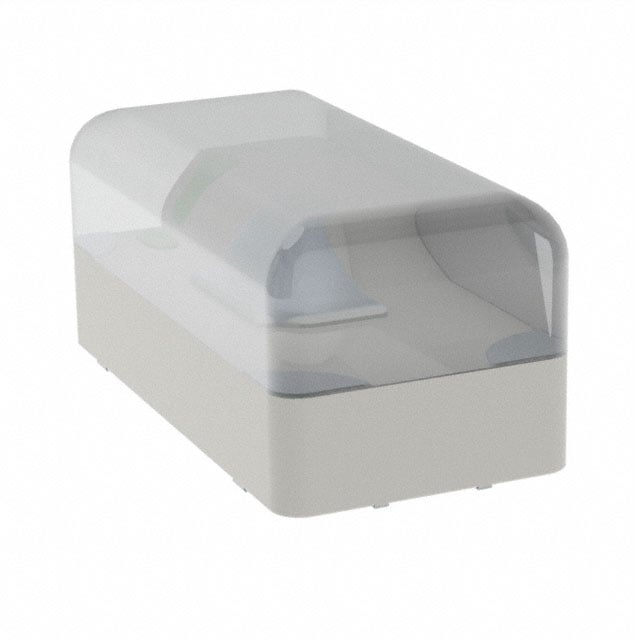

IN-S42ATA

Manufacturer :

Inolux

Product Category :

Mounting Type :

Surface Mount

Reverse Voltage-Max :

5V

Voltage - Forward (Vf) (Typ) :

2.1V

Viewing Angle :

130°

Optoelectronic Device Type :

SINGLE COLOR LED

Operating Temperature (Min) :

-30°C

Forward Current-Max :

0.025A

Lens Style :

Rectangle with Flat Top

Forward Voltage-Max :

2.6V

Terminal Pitch :

1mm

Height (Max) :

0.55mm

Package / Case :

0402 (1005 Metric)

Number of Terminations :

2

Factory Lead Time :

5 Weeks

Number of Functions :

1

Lens Color :

Clear

Size / Dimension :

1.00mm Lx0.50mm W

Overall Height :

0.45mm

Wavelength - Peak :

610nm

Number of LEDs :

1

Color :

Amber

Packing Method :

TR, 7 INCH

Current - Test :

20mA

Additional Feature :

High Reliability

RoHS Status :

ROHS3 Compliant

Surface Mount :

yes

Shape :

RECTANGULAR

Wavelength - Dominant :

605nm

Millicandela Rating :

145mcd

Series :

IN-S42AT

Operating Temperature (Max) :

80°C

Configuration :

Standard

Luminous Intensity :

145.0 mcd

Packaging :

Cut Tape (CT)

Lens Size :

0.60mmx0.45mm

Moisture Sensitivity Level (MSL) :

3 (168 Hours)

Published :

2017
