  5. IN-S126BTNPD
    Images are for reference only.

    Delivery：

    Payment：

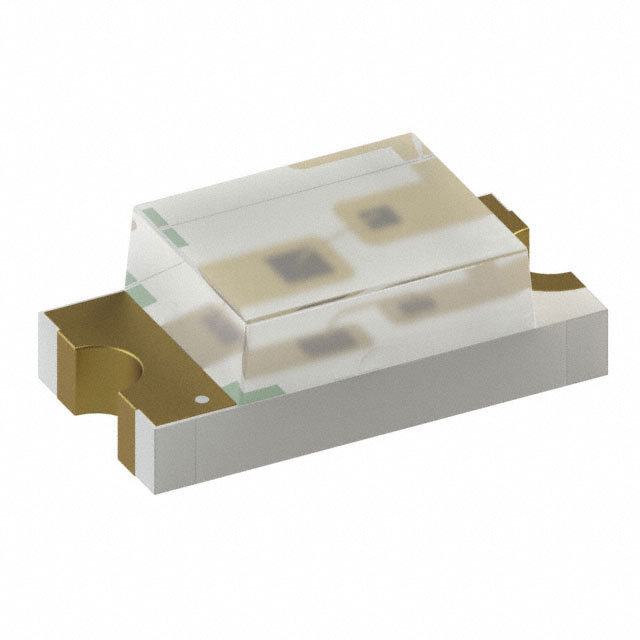

    IN-S126BTNPD

    Share

    Or copy the link below:

    Mfr.Part #
    IN-S126BTNPD
    Manufacturer
    Inolux
    Package / Case
    1206 (3216 Metric)
    Datasheet
    Download
    Description
    TOP VIEW / 1206 / 3.2X1.6X1.1
    Stock
    9,056
    In Stock ：
    9,056

    Request A Quote(RFQ)

    * Fullname:
    * Company:
    * E-Mail:
      Phone:
      Comment:
    * Quantity:
    Manufacturer :
    Inolux
    Product Category :
    Optical Sensors - Photodiodes
    Voltage - DC Reverse (Vr) (Max) :
    32V
    Operating Temperature :
    -40°C~85°C
    Color - Enhanced :
    Infrared (NIR)/Red
    Response Time :
    6μs
    Mounting Type :
    Surface Mount
    Wavelength :
    940nm
    Moisture Sensitivity Level (MSL) :
    3 (168 Hours)
    Package / Case :
    1206 (3216 Metric)
    Packaging :
    Tape and Reel (TR)
    Spectral Range :
    700nm ~ 1100nm
    Factory Lead Time :
    8 Weeks
    RoHS Status :
    ROHS3 Compliant
    Current - Dark (Typ) :
    1nA Max
    Datasheets
    IN-S126BTNPD
    Introducing Optical Sensors - Photodiodes Inolux IN-S126BTNPD from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature：-40°C~85°C, Mounting Type：Surface Mount, Package / Case：1206 (3216 Metric), IN-S126BTNPD pinout, IN-S126BTNPD datasheet PDF, IN-S126BTNPD amp .Beyond Optical Sensors - Photodiodes Inolux IN-S126BTNPD ,we also offer BPW34, BPV22NF, BPV10NF, Our vast inventory has you covered. Contact us now for immediate solutions.

    Inolux IN-S126BTNPD


    Surface Mount -40°C~85°C Tape & Reel (TR) Wavelength: 940nm 1206 (3216 Metric) 32V 6μs

    IN-S126BTNPD Overview


    Photodiodes are enclosed in Tape & Reel (TR) to prevent damage. Photodiodes are packaged in 1206 (3216 Metric) packages in order to ensure their safety. Continuous reverse-bias means the photodiodes can withstand only 32V voltage.

    IN-S126BTNPD Features


    Moisture Sensitivity Level (MSL): 3 (168 Hours)
    Operating Temperature: -40°C~85°C
    Packaging: Tape & Reel (TR)
    Spectral Range: 700nm ~ 1100nm
    Response Time: 6μs


    IN-S126BTNPD Applications


    There are a lot of Inolux
    IN-S126BTNPD Photodiodes applications.


    • Machine Controls
    • Light Barriers
    • Vision Controls
    • Measurement Levelling
    • High speed photo detectors
    • Health Monitoring
    • Heart Rate Monitoring
    • Pulse Oximetry
    • Pure UV-C Monitoring
    • Sterilization Lamp Monitoring
