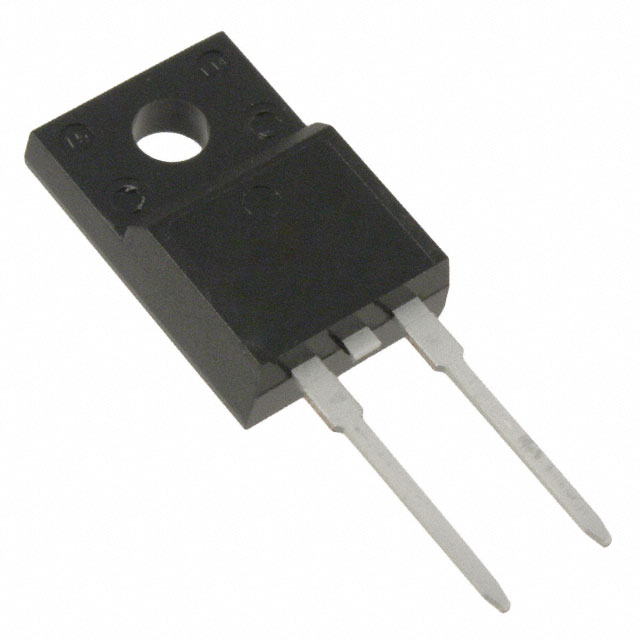

IDV03S60C

Manufacturer :

Infineon Technologies

Product Category :

Diodes - Rectifiers - Single

RoHS :

Compliant

Package :

Bulk

Mount :

Through Hole

Max Reverse Voltage (DC) :

600 V

Peak Non-Repetitive Surge Current :

16 A

Max Repetitive Reverse Voltage (Vrrm) :

600 V

Package / Case :

TO-220-2 Full Pack

Operating Temperature - Junction :

-55°C ~ 175°C

Min Operating Temperature :

-55 °C

Element Configuration :

Single

Reverse Recovery Time (trr) :

0 ns

Mounting Type :

Through Hole

Diode Type :

Silicon Carbide Schottky

REACH SVHC :

No SVHC

Current - Average Rectified (Io) :

3A (DC)

Voltage - Forward (Vf) (Max) @ If :

1.9 V @ 3 A

Forward Voltage :

1.9 V

Average Rectified Current :

3 A

Radiation Hardening :

No

Max Operating Temperature :

175 °C

Capacitance @ Vr, F :

90pF @ 1V, 1MHz

Voltage - DC Reverse (Vr) (Max) :

600 V

Reverse Recovery Time :

0 s

Series :

thinQ!™

Peak Reverse Current :

30 µA

Product Status :

Active

Supplier Device Package :

PG-TO220-2-22

Speed :

No Recovery Time > 500mA (Io)

Forward Current :

3 A

Max Forward Surge Current (Ifsm) :

16 A

Number of Pins :

2

Current - Reverse Leakage @ Vr :

30 μA @ 600 V
