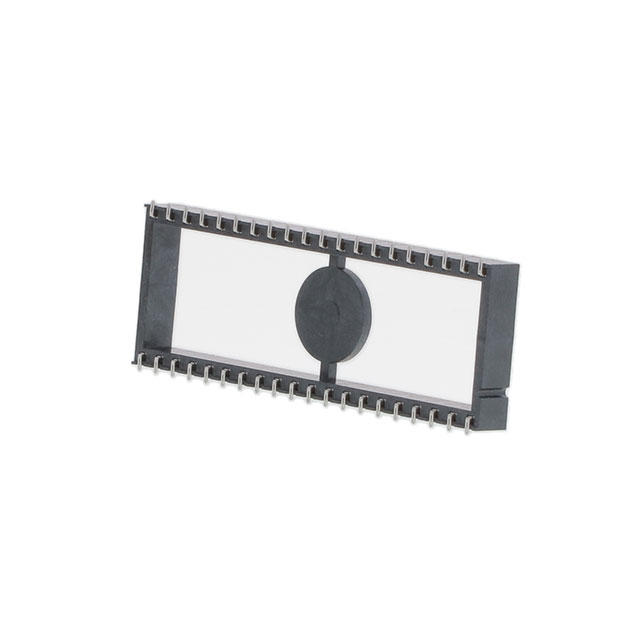

ICF-640-S-O
Or copy the link below:
- Mfr.Part #
- ICF-640-S-O
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SOCKET 40POS TIN
- Stock
- 768
- In Stock ：
- 768
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- IC Sockets
- Number of Contacts :
- 40
- Contact Plating :
- Gold
- Additional Feature :
- TIGER EYE CONTACT
- Contact Resistance :
- 10MOhm
- Insulation Material :
- Polymer
- Factory Lead Time :
- 6 Weeks
- Insulation Resistance :
- 5000000000Ohm
- Number of Positions or Pins (Grid) :
- 40 (2 x 20)
- Body Breadth :
- 0.675 inch
- PCB Contact Pattern :
- RECTANGULAR
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Pitch - Post :
- 0.100 2.54mm
- JESD-609 Code :
- e3
- Length :
- 50.8mm
- Radiation Hardening :
- No
- Contact Material - Post :
- BERYLLIUM COPPER
- Housing Material :
- Liquid Crystal Polymer (LCP)
- Depth :
- 17.15mm
- Mating Contact Pitch :
- 0.1 inch
- Connector Type :
- DIP, Socket
- Contact Style :
- Machine Screw
- Gender :
- FEMALE
- Type :
- DIP, 0.6 (15.24mm) Row Spacing
- Row Spacing :
- 15.24 mm
- Contact Material :
- Copper
- Mount :
- Surface Mount
- ECCN Code :
- EAR99
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- REACH SVHC :
- No SVHC
- Orientation :
- Straight
- Contact Finish - Mating :
- Tin
- Mounting Type :
- Surface Mount
- Contact Material - Mating :
- BERYLLIUM COPPER
- Dielectric Withstanding Voltage :
- 600VAC V
- Series :
- iCF
- Pbfree Code :
- yes
- Feature :
- Open Frame
- Pitch - Mating :
- 0.100 2.54mm
- Packaging :
- Tube
- Operating Temperature :
- -55°C~125°C
- Current Rating :
- 1A
- Number of Rows :
- 2
- Published :
- 2009
- Datasheets
- ICF-640-S-O
