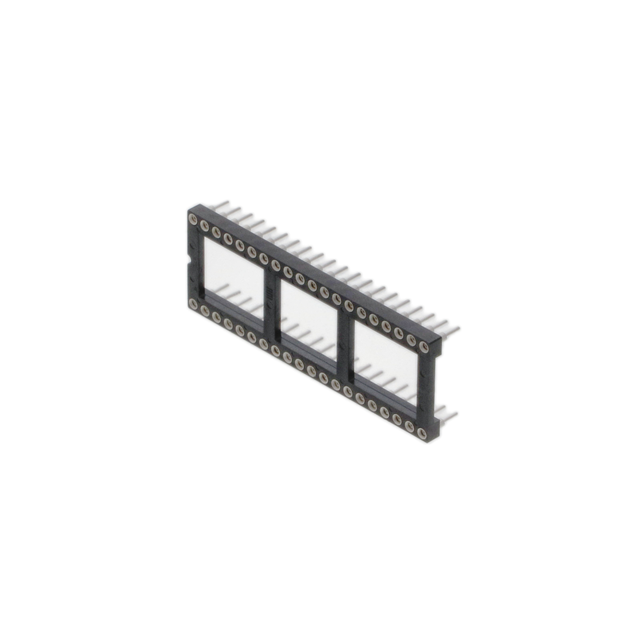

ICA-640-STT

Manufacturer :

Samtec, Inc.

Product Category :

IC Sockets

Contact Material - Mating :

BERYLLIUM COPPER

Material Flammability Rating :

UL94 V-0

Body Breadth :

0.695 inch

Pitch - Post :

0.100 2.54mm

Current Rating :

1A

Type :

DIP, 0.6 (15.24mm) Row Spacing

ECCN Code :

EAR99

PCB Contact Pattern :

RECTANGULAR

Pitch - Mating :

0.100 2.54mm

Operating Temperature :

-55°C~105°C

Depth :

17.65mm

Length :

50.8mm

Insulation Resistance :

5GOhm

Gender :

FEMALE

Feature :

Open Frame

Row Spacing :

15.24 mm

Radiation Hardening :

No

Contact Material :

Copper

Number of Positions or Pins (Grid) :

40 (2 x 20)

Additional Feature :

STANDARD: UL 94V-0

Number of Rows :

2

Factory Lead Time :

3 Weeks

Contact Material - Post :

Brass

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Housing Material :

Polyester, Glass Filled

Orientation :

Straight

RoHS Status :

ROHS3 Compliant

Mating Contact Pitch :

0.1 inch

Dielectric Withstanding Voltage :

1000VAC V

Packaging :

Tube

Contact Finish - Mating :

Tin

Mounting Type :

Through Hole

Termination :

Solder

Contact Resistance :

10MOhm

JESD-609 Code :

e3

Pbfree Code :

yes

Mount :

Through Hole

Contact Style :

Machine Screw

Insulation Material :

Polyester

Termination Post Length :

0.125 3.18mm

Number of Contacts :

40

Series :

ICA
