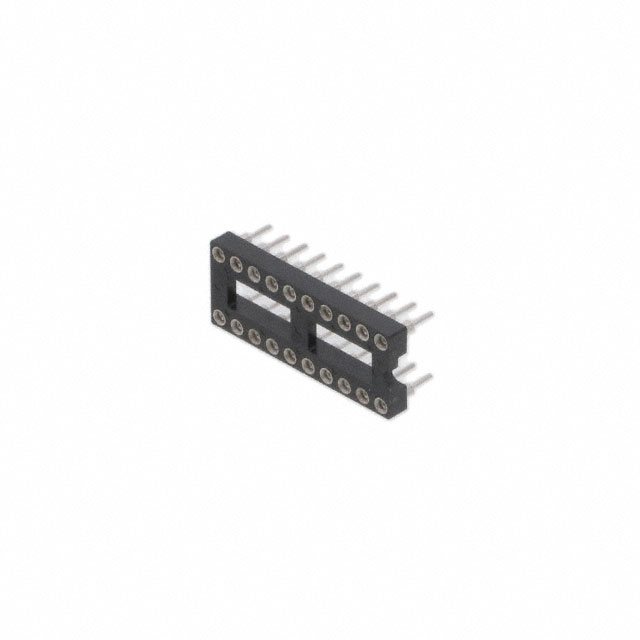

ICA-320-STT
- Mfr.Part #
- ICA-320-STT
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN IC DIP SKT 20POS
- Stock
- 40
- In Stock :
- 40
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- IC Sockets
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Style :
- Machine Screw
- PCB Contact Pattern :
- RECTANGULAR
- Pitch - Post :
- 0.100 2.54mm
- Housing Material :
- Polyester, Glass Filled
- Number of Rows :
- 2
- Number of Contacts :
- 20
- Pitch - Mating :
- 0.100 2.54mm
- Mount :
- Through Hole
- Type :
- DIP, 0.3 (7.62mm) Row Spacing
- Contact Material - Post :
- Brass
- RoHS Status :
- ROHS3 Compliant
- Feature :
- Open Frame
- PCB Contact Row Spacing :
- 0.3 mm
- Termination Post Length :
- 0.125 3.18mm
- Current Rating (Amps) :
- 1A
- HTS Code :
- 8536.69.40.40
- Series :
- ICA
- Material Flammability Rating :
- UL94 V-0
- Body Breadth :
- 0.395 inch
- Body Length or Diameter :
- 1 inch
- Gender :
- FEMALE
- Insulation Resistance :
- 5000000000Ohm
- ECCN Code :
- EAR99
- Orientation :
- Straight
- Additional Feature :
- STANDARD: UL 94V-0
- Published :
- 2011
- Contact Finish - Mating :
- Tin
- Radiation Hardening :
- No
- JESD-609 Code :
- e3
- Dielectric Withstanding Voltage :
- 1000VAC V
- Pbfree Code :
- yes
- Contact Resistance :
- 10MOhm
- Packaging :
- Bulk
- Number of Positions or Pins (Grid) :
- 20 (2 x 10)
- Factory Lead Time :
- 3 Weeks
- Mating Contact Pitch :
- 0.1 inch
- Termination :
- Solder
- Mounting Type :
- Through Hole
- Contact Material - Mating :
- BERYLLIUM COPPER
- Operating Temperature :
- -55°C~105°C
- Body Depth :
- 0.1 inch
- Datasheets
- ICA-320-STT
