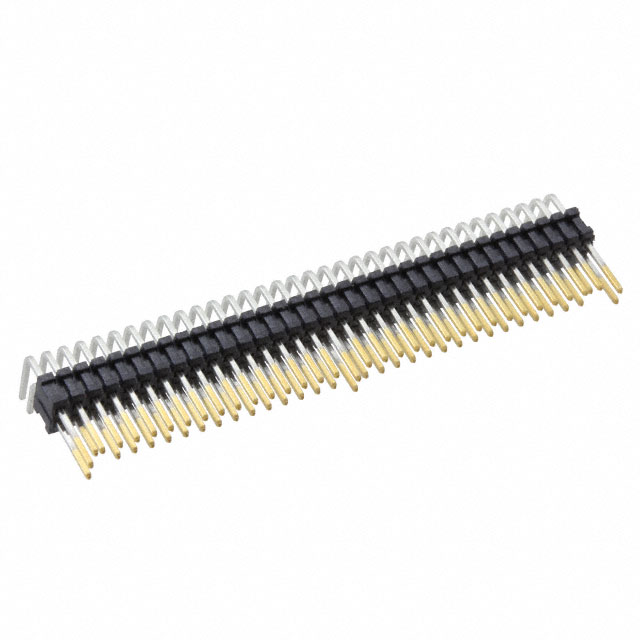

HPT-134-01-L-D-RA
Or copy the link below:
- Mfr.Part #
- HPT-134-01-L-D-RA
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER R/A 68POS 1.27MM
- Stock
- 13
- In Stock ：
- 13
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Filter Feature :
- No
- Pbfree Code :
- yes
- Fastening Type :
- Push-Pull
- Radiation Hardening :
- No
- Contact Finish Thickness - Mating :
- 10.0μin 0.25μm
- Pitch - Mating :
- 0.050 1.27mm
- Mounting Type :
- Through Hole, Right Angle
- Number of Rows :
- 2
- Contact Type :
- Male Pin
- Contact Material :
- Phosphor Bronze
- Contact Shape :
- Square
- Termination :
- Solder
- Factory Lead Time :
- 3 Weeks
- Published :
- 2008
- Gender :
- Male
- Mixed Contacts :
- No
- Number of Positions Loaded :
- All
- Option :
- GENERAL PURPOSE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -55°C~125°C
- Series :
- HPT
- IEC Conformance :
- No
- Current Rating (Amps) :
- 1.75A
- DIN Conformance :
- No
- Mount :
- Through Hole
- Contact Length - Post :
- 0.090 2.29mm
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- JESD-609 Code :
- e3
- MIL Conformance :
- No
- Insulation Color :
- Black
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Packaging :
- Tube
- Shrouding :
- Unshrouded
- Contact Finish - Post :
- Tin
- RoHS Status :
- ROHS3 Compliant
- Style :
- Board to Board
- Number of Positions :
- 68
- Connector Type :
- Header
- Contact Finish - Mating :
- Gold
- Datasheets
- HPT-134-01-L-D-RA
HPT Series 2-Row Header Solder Phosphor Bronze Tube Through Hole, Right Angle Gold Liquid Crystal Polymer (LCP) 68-Position Board to Board
HPT-134-01-L-D-RA Overview
This product is packaged in a Header box.Through Hole, Right Angle indicates that the device is mounted.An Tube case is utilized for packaging the product.The product is a part of the HPT Series.By Through Hole, the part is mounted.Operating temperature is set to -55°C~125°C.
HPT-134-01-L-D-RA Features
HPT series
HPT-134-01-L-D-RA Applications
There are a lot of Samtec Inc.
HPT-134-01-L-D-RA Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
