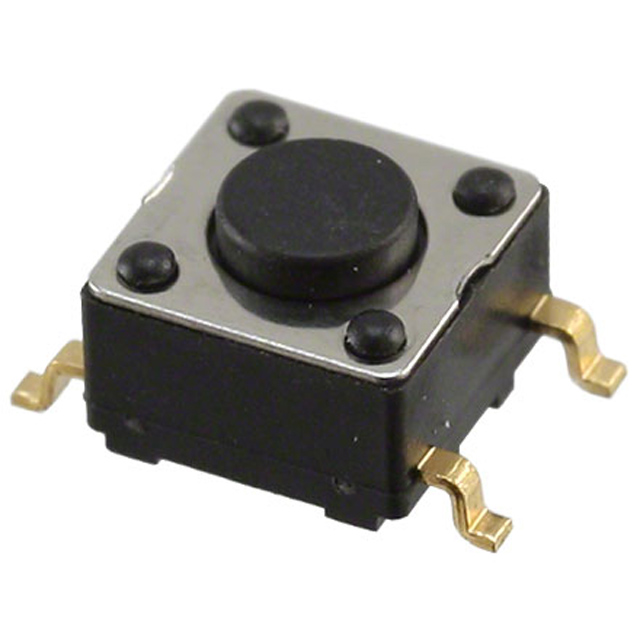

HP0315AFKP4-R
Or copy the link below:
- Mfr.Part #
- HP0315AFKP4-R
- Manufacturer
- NKK Switches
- Package / Case
- Datasheet
- Download
- Description
- SWITCH TACTILE SPST-NO 0.4VA 28V
- Stock
- 5,428
- In Stock ：
- 5,428
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- NKK Switches
- Product Category :
- Series :
- HP03
- Max Current Rating :
- 100mA
- Feature :
- Sealed - Flux Protection
- Switch Type :
- KEYPAD SWITCH
- Illumination :
- Non-Illuminated
- Mechanical Life :
- 500,000 Cycles
- REACH SVHC :
- No SVHC
- Contact Rating @ Voltage :
- 0.4VA @ 28VAC/DC
- Pbfree Code :
- yes
- Depth :
- 6.2mm
- Factory Lead Time :
- 9 Weeks
- Operating Force :
- 160gf
- Switch Function :
- Off-Mom
- RoHS Status :
- ROHS3 Compliant
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Surface Mount
- Packaging :
- Tape and Reel (TR)
- Actuator Type :
- Standard
- ECCN Code :
- EAR99
- Lead Free :
- Lead Free
- Contact Current Rating :
- 100mA
- Actuator Material :
- Polyamide (PA), Nylon, Glass Filled
- Outline :
- 6.20mm x 6.20mm
- Power Rating :
- 3W
- Voltage - Rated DC :
- 28V
- Voltage - Rated AC :
- 28V
- Switch Travel :
- 0.20mm
- Orientation :
- Straight
- Published :
- 2012
- Circuit :
- SPST-NO
- Contact Material :
- Stainless Steel
- Termination Style :
- Gull wing
- Illumination Type :
- Illuminated, Non-Illuminated
- Length :
- 9mm
- Operating Temperature :
- -20°C~70°C
- Throw Configuration :
- SPST
- Contact Plating :
- Gold
- Color :
- Black
- Termination :
- Gull wing
- Actuator Orientation :
- Top Actuated
- Actuator Height off PCB, Vertical :
- 4.40mm
- Datasheets
- HP0315AFKP4-R
HP0315AFKP4-R Documents
HP0315AFKP4-R datasheet pdf and Tactile Switches product details from NKK Switches stock available at
