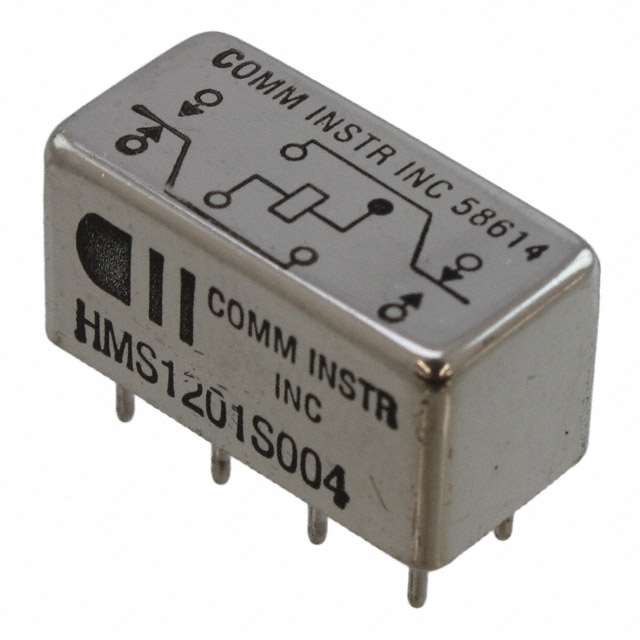

HMS1201S004
Or copy the link below:
- Mfr.Part #
- HMS1201S004
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOS DPDT 2A 26.5VDC
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Signal Relays, Up to 2 Amps
- Operating Temperature :
- -65°C~125°C
- Reference Standard :
- MIL-R-39016/44
- Mount :
- Through Hole
- Electrical Life :
- 100000 Cycle(s)
- ELV :
- Non-Compliant
- Termination Style :
- PC Pin
- Contact/Output Supply Type :
- AC/DC
- Operate Time :
- 6ms
- Body Height :
- 10.41mm
- Coil Current :
- 25.7mA
- Max Current Rating :
- 2A
- Operating Frequency-Min :
- 100MHz
- Release Time :
- 5ms
- Operating Frequency-Max :
- 1000MHz
- Contact Form :
- DPDT (2 Form C)
- Published :
- 2000
- Number of Pins :
- 8
- Sealing :
- Hermetically Sealed
- Coil Resistance :
- 1.03kOhm
- Coil Voltage :
- 26.5VDC
- Mounting Type :
- Through Hole
- Throw Configuration :
- DPDT
- Coil Power :
- 682mW
- Coil/Input Supply Type :
- DC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Radiation Hardening :
- No
- Coil Type :
- Non Latching
- Packaging :
- Bulk
- Seal Rating :
- Sealed - Hermetically
- Insertion Loss (Max) :
- 0.4 dB
- Relay Type :
- GENERAL PURPOSE
- VSWR :
- 1.19
- Contact Current(AC)-Max :
- 0.3A
- Switching Voltage :
- 28VDC - Nom
- Series :
- HMS, CII
- Contact (AC) Max Rating R Load :
- .3A@115VAC
- RoHS Status :
- Non-RoHS Compliant
- Contact Current(DC)-Max :
- 2A
- Termination :
- PC Pin, PC Pins
- ECCN Code :
- EAR99
- Body Breadth :
- 10.41 mm
- Must Operate Voltage :
- 11.4VDC
- Physical Dimension :
- 20.57mm x 10.41mm x 10.41mm
- Isolation Max :
- 23 dB
- Body Length or Diameter :
- 20.57mm
- Relay Action :
- Momentary
- Max Voltage Rating (DC) :
- 28V
- Lifecycle Status :
- ACTIVE (Last Updated: 5 days ago)
- Contact Voltage(AC)-Max :
- 115V
- Must Release Voltage :
- 1.1VDC
- Coil Voltage (DC) :
- 26.5V
- Contact Material :
- Silver (Ag), Gold (Au)
- Factory Lead Time :
- 26 Weeks
- Datasheets
- HMS1201S004
