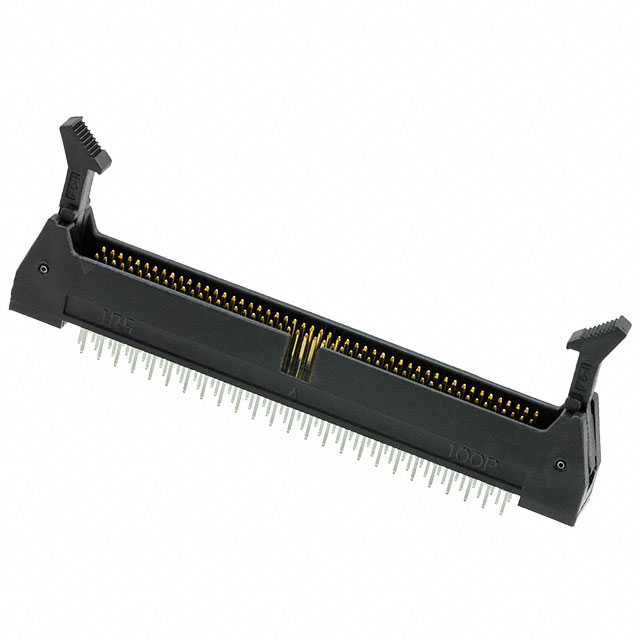

HIF6H-100PA-1.27DSA(71)

Manufacturer :

Hirose

Product Category :

Headers, Male Pins

Reach Compliance Code :

Unknown

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Free :

Lead Free

Current Rating (Amps) :

0.5A

Contact Resistance :

30mOhm

Shrouding :

Shrouded - 4 Wall

Mounting Option 2 :

LOCKING

Row Spacing - Mating :

0.100 (2.54mm)

Factory Lead Time :

10 Weeks

Contact Material :

Brass

Number of Positions Loaded :

All

Packaging :

Tray

Connector Type :

Header

Number Of PCB Rows :

4

Contact Length - Post :

0.110 2.79mm

IEC Conformance :

No

HTS Code :

8536.69.40.40

MIL Conformance :

No

Style :

Board to Cable/Wire

Number of Rows :

2

Operating Temperature :

-55°C~85°C

Material Flammability Rating :

UL94 V-0

Contact Finish Thickness - Post :

78.7μin 2.00μm

Mixed Contacts :

No

Contact Type :

Male Pin

Contact Length - Mating :

0.205 5.21mm

ECCN Code :

EAR99

Number of Conductors :

ONE

Polarization Key :

GUIDE SLOT(S)

Option :

GENERAL PURPOSE

Durability :

500 Cycles

Termination :

Solder

Series :

HIF6

Length - Termination :

0.11 inch

Contact Finish - Post :

Tin

RoHS Status :

RoHS Compliant

PCB Contact Row Spacing :

1.905 mm

Filter Feature :

No

PCB Contact Pattern :

STAGGERED

Fastening Type :

Latch Lock/Eject Hooks

Pitch - Mating :

0.050 1.27mm

Mating Contact Pitch :

0.05 inch

Contact Gender :

Male

DIN Conformance :

No

Current Rating :

500mA

Overall Contact Length :

0.563 14.30mm

Mounting Type :

Through Hole

Contact Shape :

Square

Insulation Color :

Black

Voltage - Rated :

300V

UL Flammability Code :

94V-0

Insulation Material :

Polybutylene Terephthalate (PBT)

Contact Finish Thickness - Mating :

8.00μin 0.203μm

Reliability :

COMMERCIAL

Contact Finish - Mating :

Gold

Mounting Option 1 :

LATCH and EJECT

Reference Standard :

UL

Number of Positions :

100

Insulation Height :

0.606 15.39mm
