HIF6B-68PA-1.27DSA(71)

Share

Or copy the link below:

Mfr.Part #
HIF6B-68PA-1.27DSA(71)
Manufacturer
Hirose
Package / Case
Datasheet
Download
Description
CONN HEADER VERT 68POS 1.27MM
Stock
7
In Stock :
7

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Hirose
Product Category :
Headers, Male Pins
Reach Compliance Code :
Unknown
Mixed Contacts :
No
Contact Finish - Mating :
Gold
Option :
GENERAL PURPOSE
Row Spacing - Mating :
0.100 (2.54mm)
Contact Length - Post :
0.110 2.79mm
RoHS Status :
RoHS Compliant
Contact Type :
Male Pin
Series :
HIF6
Fastening Type :
Push-Pull
Insulation Height :
0.453 11.50mm
Factory Lead Time :
10 Weeks
IEC Conformance :
No
Insulation Material :
Polybutylene Terephthalate (PBT)
Lead Free :
Lead Free
Contact Finish - Post :
Tin
UL Flammability Code :
94V-0
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Number of Rows :
2
Shrouding :
Shrouded - 4 Wall
Contact Shape :
Square
MIL Conformance :
No
Contact Finish Thickness - Post :
78.7μin 2.00μm
Current Rating (Amps) :
0.5A
Voltage - Rated :
300V
Packaging :
Tray
Contact Material :
Brass
Termination :
Solder
Filter Feature :
No
Contact Length - Mating :
0.205 5.21mm
Insulation Color :
Black
Connector Type :
Header
DIN Conformance :
No
Style :
Board to Board
Contact Finish Thickness - Mating :
8.00μin 0.203μm
Pitch - Mating :
0.050 1.27mm
Number of Positions :
68
Mounting Type :
Through Hole
Number of Positions Loaded :
All
Operating Temperature :
-55°C~85°C
Material Flammability Rating :
UL94 V-0
Current Rating :
500mA
Introducing Headers, Male Pins Hirose HIF6B-68PA-1.27DSA(71) from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Through Hole, Operating Temperature:-55°C~85°C, HIF6B-68PA-1.27DSA(71) pinout, HIF6B-68PA-1.27DSA(71) datasheet PDF, HIF6B-68PA-1.27DSA(71) amp .Beyond Headers, Male Pins Hirose HIF6B-68PA-1.27DSA(71) ,we also offer 3220-20-0100-00, 3020-26-0300-00, 3220-26-0300-00-TR, Our vast inventory has you covered. Contact us now for immediate solutions.

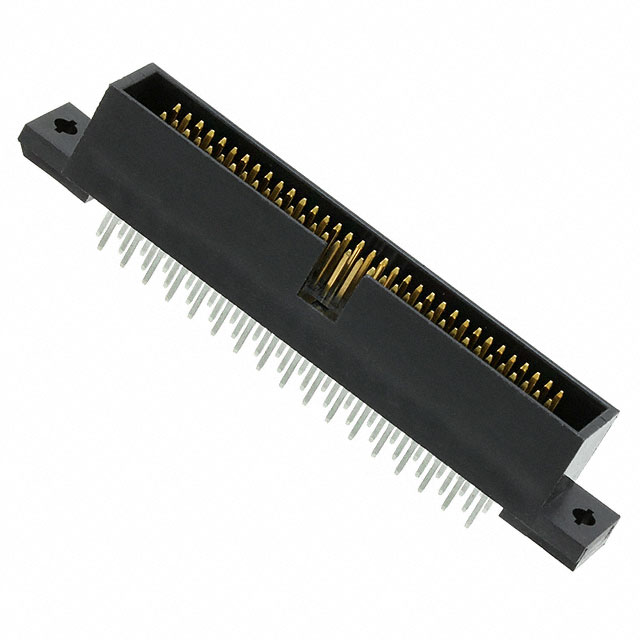

Hirose HIF6B-68PA-1.27DSA(71)


HIF6 Series 2-Row Header Solder Brass Tray Through Hole Gold Polybutylene Terephthalate (PBT) 68-Position Board to Board 0.453 11.50mm Height

HIF6B-68PA-1.27DSA(71) Overview


This product is packaged in a Header cartonThis device's mounting type is Through Hole.It's packaged in a Tray case.HIF6 Series product.Running in -55°C~85°C Operating Temperature.

HIF6B-68PA-1.27DSA(71) Features


HIF6 series


HIF6B-68PA-1.27DSA(71) Applications


There are a lot of Hirose Electric Co Ltd
HIF6B-68PA-1.27DSA(71) Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
