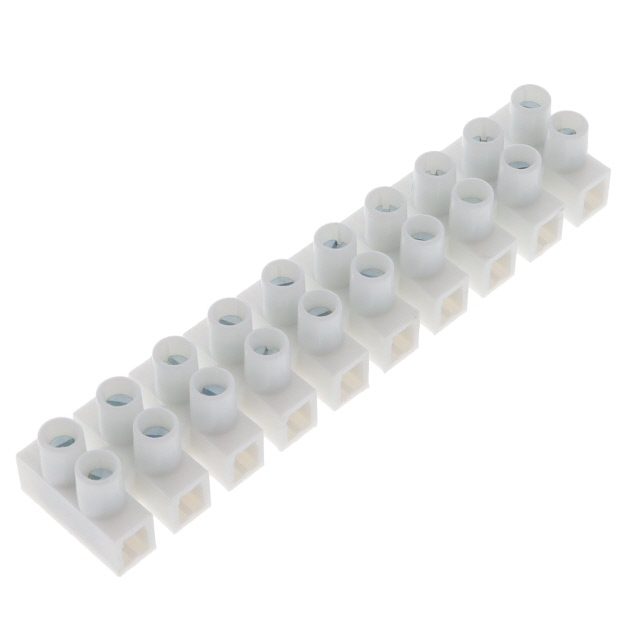

HE1WPR/10

Manufacturer :

Altech Corporation

Product Category :

Barrier Blocks

Subcategory :

Terminal Blocks

Operating Voltage (Max) :

300V

Current Rating :

20 A

Voltage Rating :

300 V

Rad Hardened :

No

Mounting Style :

Panel

Product Depth (mm) :

16.2(mm)

RoHS :

Details

Pitch :

0.315 (8.00mm)

Barrier Type :

Enclosed

Product Height (mm) :

12.2(mm)

Color :

White

Manufacturer :

Altech

Material Flammability Rating :

UL94 V-0

Bottom Termination :

Closed

Number of Contacts :

20(POS)

Number of Rows :

2

Number of Positions :

10 Position

Connection Type :

Screw Clamp

Series :

*

Product Length (mm) :

78(mm)

Contact Pitch (mm) :

8(mm)

Number of Wire Entries :

20

Termination Method :

Screw

Reach Compliance Code :

Unknown

Approvals :

CE, cURus, IEC

Wire Gauge :

12-24(AWG)

Number of Poles :

10

Features :

-

Product Category :

Barrier Terminal Blocks

Mounting Hole Diameter :

0.11

Base Product Number :

HE1WPR

Material - Insulation :

Polyamide (PA66), Nylon 6/6

Current Rating (Max) :

20(A)

Top Termination :

Screws

Package :

Bulk

Product Type :

Barrier Terminal Blocks

Housing Material :

Polyamide 6/6

Operating Temperature :

-30°C ~ 125°C

Product :

Barrier Terminal Blocks

Product Status :

Active

Housing Color :

OPAQUE WHITE

Current Rating (Amps) :

20A

Terminal Block Type :

Eurostyle Terminal Strip

Terminal and Terminal Block Type :

BARRIER STRIP TERMINAL BLOCK

Brand :

Altech

Terminal Screw Finish :

Blue Chromate

Number of Circuits :

10

Mounting Type :

Panel Mount

Type :

Terminal Block

Number of Contact Rows :

2

Terminal Screw Material :

Steel
