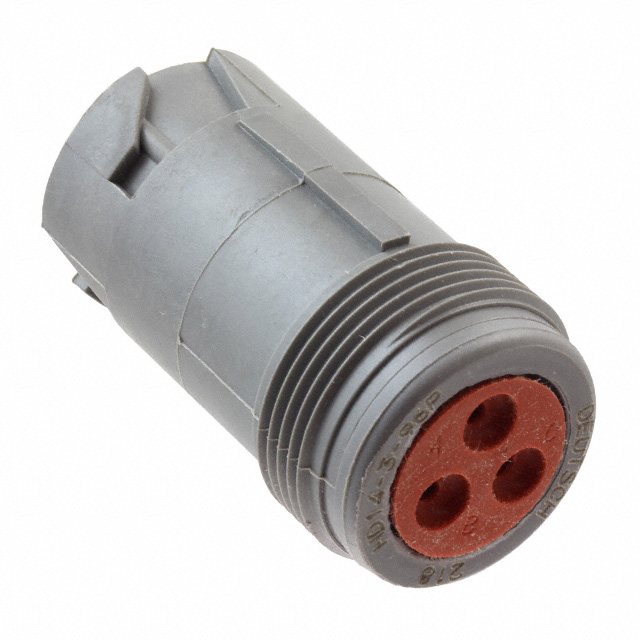

HD14-3-96P
Or copy the link below:
- Mfr.Part #
- HD14-3-96P
- Manufacturer
- TE Connectivity DEUTSCH Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSNG MALE 3POS INLINE
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity DEUTSCH Connectors
- Product Category :
- Circular Connector Housings
- Contact Shape :
- Circular
- Length :
- 21.7678mm
- Fastening Type :
- Bayonet Lock
- Type :
- For Male Pins
- Ingress Protection :
- IP68 - Dust Tight, Waterproof
- Insert Material :
- Polyamide (PA), Nylon, Glass Filled
- Option :
- GENERAL PURPOSE
- Filter Feature :
- No
- Height :
- 41.6306mm
- Number of Positions :
- 3
- Shell Material :
- Polyamide (PA), Nylon, Glass Filled
- Shell Size - Insert :
- 3-96
- Housing Color :
- Gray
- Contact Size :
- 16
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- ECCN Code :
- EAR99
- Note :
- Contacts Not Included
- Shielding :
- Unshielded
- RoHS Status :
- RoHS Compliant
- Housing Material :
- Thermoplastic
- DIN Conformance :
- No
- Connector Type :
- Receptacle Housing
- Orientation :
- Keyed
- Operating Temperature :
- -40°C~125°C
- IEC Conformance :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Flammability Rating :
- UL94 V-1
- Material Flammability Rating :
- UL94 V-1
- Empty Shell :
- No
- Series :
- HD10
- Polarized :
- yes
- Mounting Type :
- Free Hanging (In-Line)
- Packaging :
- Bulk
- Color :
- Grey
- MIL Conformance :
- No
- Factory Lead Time :
- 8 Weeks
- Width :
- 21.77mm
- Contact Type :
- Crimp
- Hybrid Connector :
- No
- Total Number of Contacts :
- 3
- ELV :
- Compliant
- Published :
- 2013
- Datasheets
- HD14-3-96P
Receptacle Housing Polyamide (PA), Nylon, Glass Filled Free Hanging (In-Line) 3 Positions Bulk Bayonet Lock Unshielded Contacts Not Included HD10
HD14-3-96P Overview
The packaging contains Receptacle Housing.There is a Free Hanging (In-Line) mounting type for the device.This product is packaged in a case marked Bulk.Product number HD10 belongs to the HD10 Series.It shares a number of benefits with other For Male Pins products.
HD14-3-96P Features
HD10 series
HD14-3-96P Applications
There are a lot of TE Connectivity Deutsch Connectors
HD14-3-96P Circular Connectors applications.
- Medical Instrumentation and medical imaging
- Music recording
- Digital signal processing
- Scientific instruments
- Rotary encoder
- Displaying
- Transducer
- Microcontrollers.
- Digital Storage Oscilloscope
- Scientific instruments.
