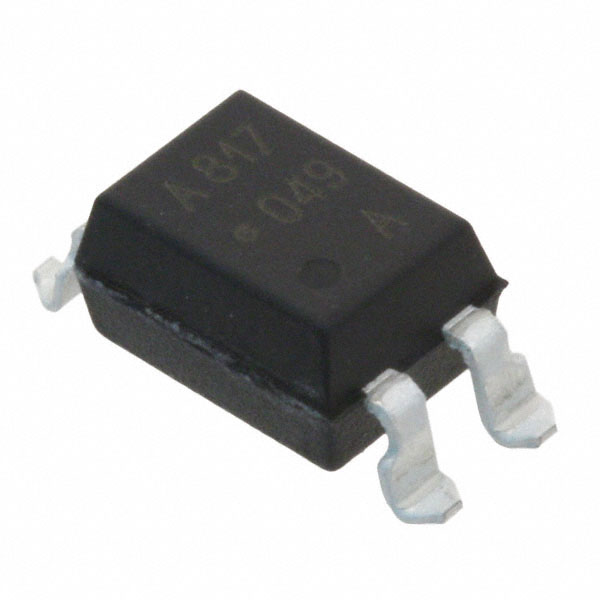

HCPL-814-300E

Manufacturer :

Broadcom

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Power Dissipation :

200mW

Max Input Current :

50mA

JESD-609 Code :

e3

Output Current per Channel :

50mA

Mounting Type :

Surface Mount

Voltage - Isolation :

5000Vrms

Collector Emitter Voltage (VCEO) :

35V

Collector Emitter Breakdown Voltage :

35V

REACH SVHC :

No SVHC

Fall Time (Typ) :

18 μs

Additional Feature :

UL RECOGNIZED

Vce Saturation (Max) :

200mV

Input Type :

AC, DC

Current Transfer Ratio (Min) :

20% @ 1mA

Lead Free :

Lead Free

Operating Temperature :

-30°C~100°C

Current Transfer Ratio (Max) :

300% @ 1mA

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Pins :

4

Number of Elements :

1

RoHS Status :

ROHS3 Compliant

Input Current :

20mA

Output Voltage :

35V

Rise Time :

4μs

Published :

2007

Mount :

Surface Mount

Rise / Fall Time (Typ) :

4μs 3μs

Terminal Finish :

Matte Tin (Sn)

Output Type :

Transistor

ECCN Code :

EAR99

Packaging :

Tube

Radiation Hardening :

No

Configuration :

Single

Approval Agency :

CSA, UL, VDE

Forward Current :

50mA

Package / Case :

4-SMD, Gull Wing

Max Collector Current :

50mA

Voltage - Forward (Vf) (Typ) :

1.2V

Factory Lead Time :

17 Weeks

Collector Emitter Saturation Voltage :

200mV

Max Power Dissipation :

200mW

Max Output Voltage :

35V
