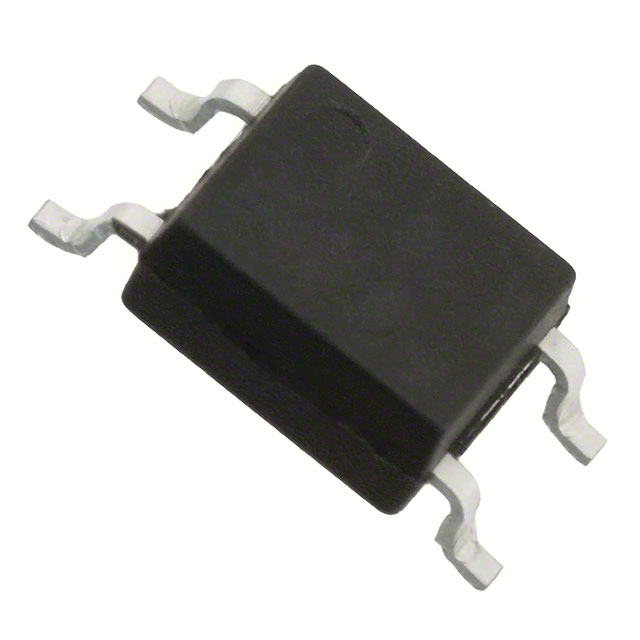

HCPL-181-06BE

Manufacturer :

Broadcom

Product Category :

Optoisolators - Transistor, Photovoltaic Output

Mounting Type :

Surface Mount

Voltage - Isolation :

3750Vrms

Reverse Breakdown Voltage :

6V

Package / Case :

4-SMD, Gull Wing

Operating Temperature :

-55°C~100°C

Max Input Current :

50mA

Terminal Finish :

Matte Tin (Sn)

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Collector Emitter Breakdown Voltage :

80V

Current Transfer Ratio (Min) :

130% @ 5mA

Max Power Dissipation :

170mW

REACH SVHC :

No SVHC

Rise Time :

18μs

Configuration :

Single

Collector Emitter Voltage (VCEO) :

200mV

Number of Pins :

4

Max Collector Current :

50mA

Input Current :

20mA

Output Type :

Transistor

Power Dissipation :

170mW

Mount :

Surface Mount

Rise / Fall Time (Typ) :

4μs 3μs

Collector Emitter Saturation Voltage :

200mV

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Voltage - Forward (Vf) (Typ) :

1.2V

Additional Feature :

UL RECOGNIZED

Factory Lead Time :

22 Weeks

Output Voltage :

80V

Number of Elements :

1

Fall Time (Typ) :

18 μs

Current Transfer Ratio (Max) :

260% @ 5mA

Approval Agency :

CSA, UL, VDE

Published :

2006

Input Type :

DC

Forward Current :

50mA

Max Output Voltage :

80V

Output Current per Channel :

50mA

JESD-609 Code :

e3

Packaging :

Tape and Reel (TR)

Radiation Hardening :

No
