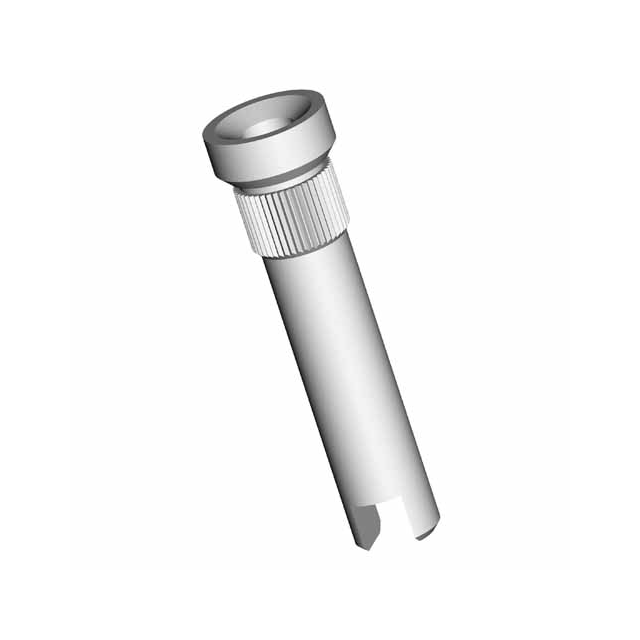

H9087-01
Or copy the link below:
- Mfr.Part #
- H9087-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PC PIN CIRC 0.065DIA TIN
- Stock
- 5,787
- In Stock ：
- 5,787
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- Board Thickness :
- 0.063 1.60mm
- Contact Plating :
- Lead, Tin
- Gender :
- Male
- Length :
- 8.636mm
- Hole Diameter :
- 1.8288 mm
- Contact Material :
- Brass Alloy
- Pin Size - Above Flange :
- 0.065 1.65mm Dia
- Pbfree Code :
- yes
- Length - Overall :
- 0.340 8.64mm
- Mounting Hole Diameter :
- 0.070 ~ 0.072 (1.78mm ~ 1.83mm)
- ECCN Code :
- EAR99
- Terminal and Terminal Block Type :
- PCB TERMINAL
- HTS Code :
- 8536.90.40.00
- Packaging :
- Bulk
- Insulation :
- Non-Insulated
- Terminal Style :
- Single End, Slotted
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Connector, PCB, Signal
- Termination :
- Swage
- Flange Diameter :
- 0.093 (2.36mm)
- Terminal Type :
- PC Pin
- Published :
- 2002
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Through Hole
- Factory Lead Time :
- 9 Weeks
- Mount :
- Through Hole
- Contact Finish :
- Tin
- Length - Above Flange :
- 0.240 6.10mm
- Datasheets
- H9087-01
