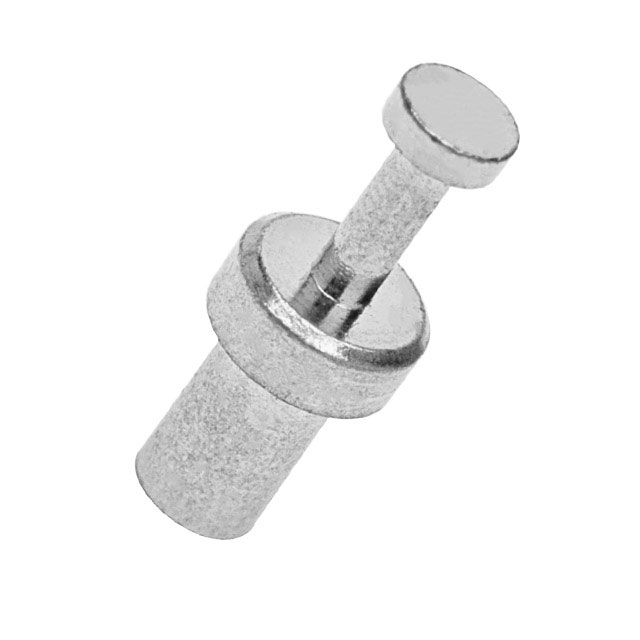

H9005-01
Or copy the link below:
- Mfr.Part #
- H9005-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- TERM TURRET SINGLE L=4.88MM TIN
- Stock
- 13,912
- In Stock ：
- 13,912
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Turret Connectors
- Mounting Hole Diameter :
- 0.079 ~ 0.082 (2.01mm ~ 2.08mm)
- Length - Below Flange :
- 0.125 ~ 0.130 3.18mm ~ 3.30mm
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Published :
- 2007
- Flange Diameter :
- 0.125 (3.18mm)
- Contact Material :
- Brass Alloy
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Contact Finish :
- Tin
- Mounting Type :
- Through Hole
- Termination :
- Swage
- HTS Code :
- 8536.90.40.00
- Pbfree Code :
- yes
- Staking Side ID :
- 0.055 (1.40mm)
- Insulation :
- Non-Insulated
- Length - Overall :
- 0.314 7.98mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Diameter - Turret Head :
- 0.078 (1.98mm)
- Length - Above Board :
- 0.192 4.88mm
- Terminal Type :
- Single End
- Number of Turrets :
- Single
- Datasheets
- H9005-01
