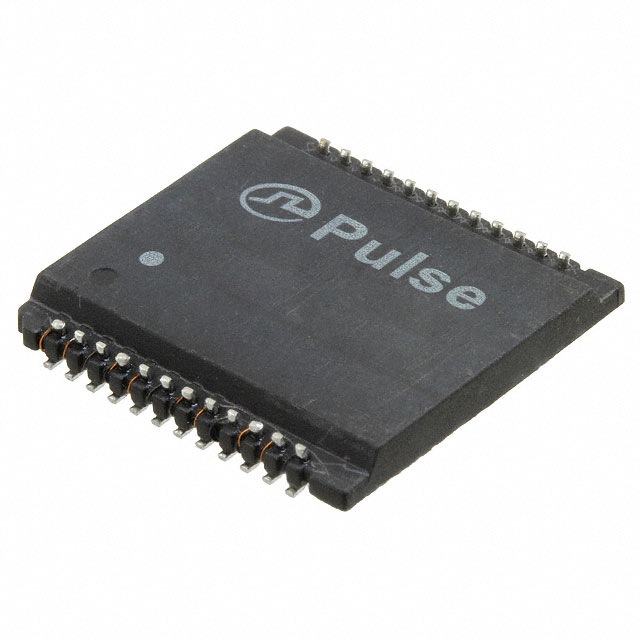

H5019EFNL

Manufacturer :

Pulse Electronics

Product Category :

Specialty Transformers

Max Operating Temperature :

70°C

Isolation Voltage :

1500V

Packaging :

Tube

Product :

LAN

Length :

19.81mm

Product Status :

Active

Reach Compliance Code :

Compliant

Turns Ratio - Primary:Secondary :

1:1

Number of Pins :

24

Radiation Hardening :

No

Factory Lead Time :

14 Weeks

Primary Inductance :

350 µH

Package / Case :

SMD/SMT

Approvals :

UL

Termination Style :

SMD/SMT

Lead/Base Style :

Gull wing

Physical Dimension :

L19.81XB19.05XH2.54 (mm)

Additional Feature :

HEIGHT DIMENSION INCLUDES TERMINALS ALSO

Shielding :

Unshielded

Manufacturer :

Pulse

Height :

2.54 mm

Height Seated (Max) :

0.772 19.60mm

Height - Seated (Max) :

0.100 (2.54mm)

Product Type :

Audio and Signal Transformers

Surface Mount :

yes

Width :

19.05mm

Insertion Loss :

1.2 dB

Number of Functions :

4

Application :

GENERAL PURPOSE

Brand :

Pulse Electronics

Series :

-

Size / Dimension :

0.780Lx0.750W 19.81mmx19.05mm

Frequency Range :

1 MHz to 100 MHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Maximum Operating Temperature :

+ 70 C

RoHS Status :

RoHS Compliant

Mounting Feature :

Surface Mount

Product Category :

Audio Transformers / Signal Transformers

Number of Channels :

Single

Published :

2014

Transformer Type :

DATACOM TRANSFORMER

Inductance :

350μH

Type :

Module

Min Operating Temperature :

0°C

RoHS :

Details

For Use With/Related Products :

-

Approval Agency :

UL

Mounting Type :

Surface Mount

Package :

Tube

Minimum Operating Temperature :

0 C

Mount :

Surface Mount
