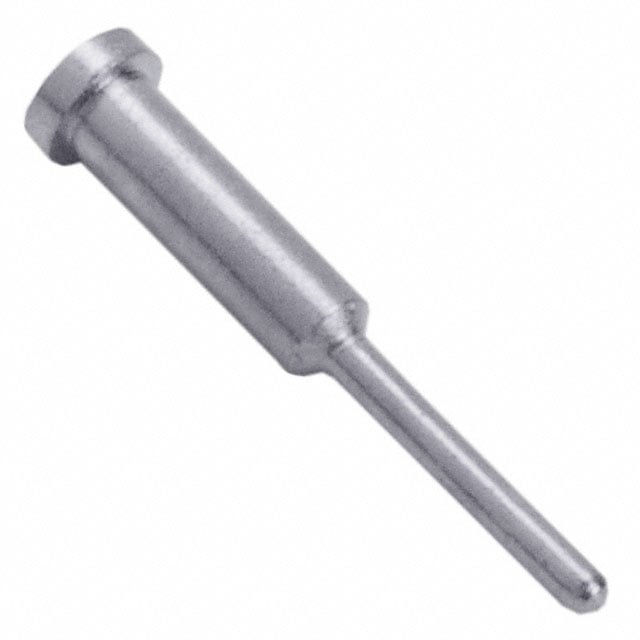

H3192-05
Or copy the link below:
- Mfr.Part #
- H3192-05
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN RCPT .018-.020 SOLDER
- Stock
- 4,315
- In Stock ：
- 4,315
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin Receptacles, Socket Connectors
- Factory Lead Time :
- 13 Weeks
- HTS Code :
- 8536.90.40.00
- Pbfree Code :
- yes
- Length - Overall :
- 0.297 7.54mm
- Connector Type :
- Connector, PCB, Signal, Socket
- Orientation :
- Straight
- Number of Contacts :
- 1
- Length :
- 7.5438mm
- Contact Material :
- BERYLLIUM COPPER
- REACH SVHC :
- No SVHC
- Accepts Pin Diameter :
- 0.018 ~ 0.020 (0.46mm ~ 0.51mm)
- Pin Hole Diameter :
- 0.043 (1.09mm)
- Depth :
- 1.45mm
- Mounting Hole Diameter :
- 0.039 ~ 0.043 (0.99mm ~ 1.09mm)
- Max Current Rating :
- 2A
- Contact Resistance :
- 25mOhm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish :
- Gold
- Socket Depth :
- 0.124 3.15mm
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Published :
- 2009
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Current Rating :
- 2A
- Operating Temperature :
- -55°C~125°C
- ECCN Code :
- EAR99
- Flange Diameter :
- 0.057 (1.45mm)
- Tail Type :
- Standard Tail
- Insertion Force :
- 2.00N ~ 6.00N
- Tail Diameter :
- 0.023 (0.59mm)
- Contact Finish Thickness :
- 3.94μin 0.10μm
- Termination :
- Solder
- Radiation Hardening :
- No
- Hole Diameter :
- 1.1 mm
- Material :
- Brass
- Datasheets
- H3192-05
