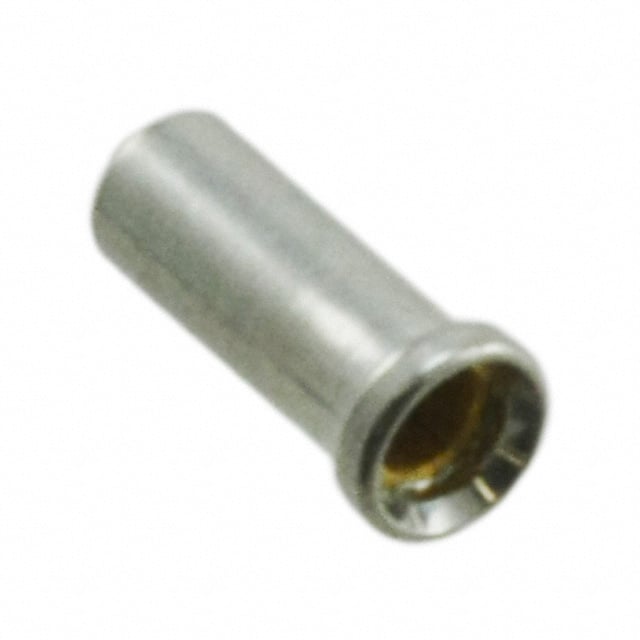

H3183-01
Or copy the link below:
- Mfr.Part #
- H3183-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN RCPT .035-.041 SOLDER
- Stock
- 22,107
- In Stock ：
- 22,107
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin Receptacles, Socket Connectors
- Pbfree Code :
- yes
- Plating :
- Tin
- Contact Finish :
- Gold
- Socket Depth :
- 0.140 3.56mm
- Length :
- 5.2578mm
- Published :
- 2001
- Factory Lead Time :
- 9 Weeks
- Length - Overall :
- 0.207 5.26mm
- Tail Type :
- No Tail
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Accepts Pin Diameter :
- 0.035 ~ 0.041 (0.89mm ~ 1.05mm)
- Insertion Force :
- 3.00N ~ 9.00N
- Operating Temperature :
- -55°C~125°C
- Number of Contacts :
- 1
- Material :
- Brass
- Mount :
- Through Hole
- Hole Diameter :
- 1.9 mm
- Current Rating :
- 10A
- REACH SVHC :
- No SVHC
- ECCN Code :
- EAR99
- Termination :
- Solder
- RoHS Status :
- ROHS3 Compliant
- Gender :
- FEMALE
- Packaging :
- Bulk
- Outside Diameter :
- 2.35 mm
- Mounting Hole Diameter :
- 0.075 ~ 0.079 (1.91mm ~ 2.01mm)
- Radiation Hardening :
- No
- HTS Code :
- 8536.90.40.00
- Connector Type :
- Connector, PCB, Socket
- Flange Diameter :
- 0.092 (2.34mm)
- Contact Finish Thickness :
- 5.90μin 0.150μm
- Contact Material :
- BERYLLIUM COPPER
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Datasheets
- H3183-01
H3183-01 Documents
H3183-01 datasheet pdf and Terminals - PC Pin Receptacles, Socket Connectors product details from Harwin Inc. stock available at Xinshop
