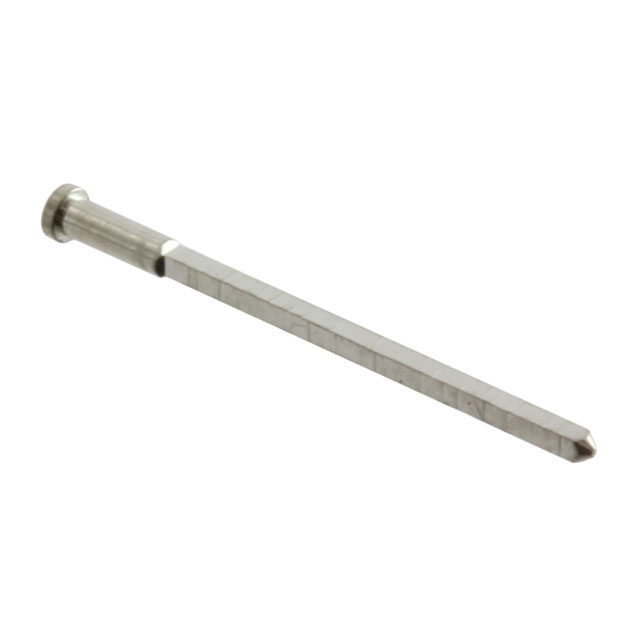

H3175-01
Or copy the link below:
- Mfr.Part #
- H3175-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN RCPT .016-.021 PRESSFIT
- Stock
- 13,969
- In Stock ：
- 13,969
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin Receptacles, Socket Connectors
- Flange Diameter :
- 0.019 (0.48mm)
- Contact Finish Thickness :
- 3.94μin 0.10μm
- ECCN Code :
- EAR99
- Tail Type :
- Wire Wrap
- Socket Depth :
- 0.128 3.25mm
- HTS Code :
- 8536.90.40.00
- Operating Temperature :
- -55°C~125°C
- Contact Material :
- BERYLLIUM COPPER
- Length - Overall :
- 0.656 16.66mm
- Pbfree Code :
- yes
- Contact Finish :
- Gold
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- Accepts Pin Diameter :
- 0.016 ~ 0.021 (0.41mm ~ 0.53mm)
- Mounting Hole Diameter :
- 0.039 ~ 0.043 (0.99mm ~ 1.09mm)
- Published :
- 2009
- Tail Diameter :
- 0.025 (0.64mm)
- Insertion Force :
- 6.00N
- Packaging :
- Bulk
- Termination :
- Press-Fit
- Factory Lead Time :
- 13 Weeks
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Datasheets
- H3175-01
