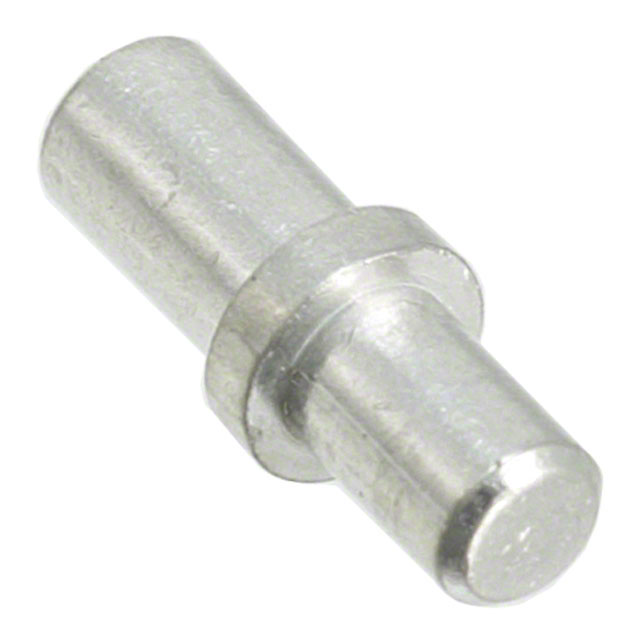

H3163-01
Or copy the link below:
- Mfr.Part #
- H3163-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN RCPT .035-.041 PRESSFIT
- Stock
- 500
- In Stock ：
- 500
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin Receptacles, Socket Connectors
- Insertion Force :
- 3.00N ~ 9.00N
- Number of Contacts :
- 1
- Socket Depth :
- 0.192 4.88mm
- Contact Finish :
- Gold
- Packaging :
- Bulk
- Termination :
- Press-Fit
- Mount :
- Through Hole
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Length - Overall :
- 0.312 7.92mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Factory Lead Time :
- 13 Weeks
- Current Rating :
- 10A
- Accepts Pin Diameter :
- 0.035 ~ 0.041 (0.89mm ~ 1.05mm)
- Plating :
- Tin
- ECCN Code :
- EAR99
- Pbfree Code :
- yes
- Orientation :
- Straight
- Tail Type :
- No Tail
- Contact Finish Thickness :
- 5.90μin 0.150μm
- Published :
- 2012
- Flange Diameter :
- 0.125 (3.18mm)
- HTS Code :
- 8536.90.40.00
- RoHS Status :
- ROHS3 Compliant
- Radiation Hardening :
- No
- Length :
- 7.9248mm
- Outside Diameter :
- 3.18 mm
- Connector Type :
- Connector, Socket
- Operating Temperature :
- -55°C~125°C
- Mounting Hole Diameter :
- 0.086 ~ 0.090 (2.18mm ~ 2.29mm)
- Contact Material :
- BERYLLIUM COPPER
- Hole Diameter :
- 2.29 mm
- Material :
- Brass
- Contact Plating :
- Gold, Tin
- Datasheets
- H3163-01
H3163-01 datasheet pdf and Terminals - PC Pin Receptacles, Socket Connectors product details from Harwin Inc. stock available at Xinshop
