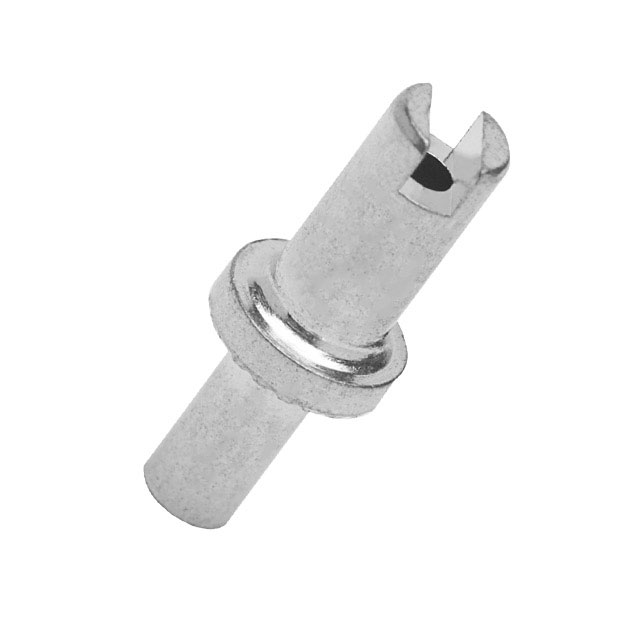

H3072-01
Or copy the link below:
- Mfr.Part #
- H3072-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- TERM TURRET HOLLOW L=6.12-6.62MM
- Stock
- 2,637
- In Stock ：
- 2,637
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Turret Connectors
- Contact Plating :
- Tin
- Mount :
- Through Hole
- Terminal Type :
- Single End, Fork, Hollow
- HTS Code :
- 8536.90.40.00
- Pbfree Code :
- yes
- RoHS Status :
- ROHS3 Compliant
- Gender :
- Male
- ECCN Code :
- EAR99
- Flange Diameter :
- 0.156 ~ 0.161 (3.96mm ~ 4.09mm)
- Contact Material :
- Brass Alloy
- Insulation :
- Non-Insulated
- Length :
- 10.7188mm
- Length - Above Board :
- 0.241 ~ 0.261 6.12mm ~ 6.62mm
- Length - Below Flange :
- 0.156 ~ 0.161 3.96mm ~ 4.09mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Board Thickness :
- 0.126 3.20mm
- Length - Overall :
- 0.402 ~ 0.422 10.21mm ~ 10.71mm
- Mounting Hole Diameter :
- 0.080 ~ 0.083 (2.03mm ~ 2.11mm)
- Mounting Type :
- Through Hole
- Staking Side OD :
- 0.076 ~ 0.079 (1.93mm ~ 2.01mm)
- Published :
- 2006
- Hole Diameter :
- 2.1082 mm
- Factory Lead Time :
- 13 Weeks
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Number of Turrets :
- Single
- Termination :
- Swage
- Body Material :
- Brass
- Datasheets
- H3072-01
H3072-01 datasheet pdf and Terminals - Turret Connectors product details from Harwin Inc. stock available at Xinshop
