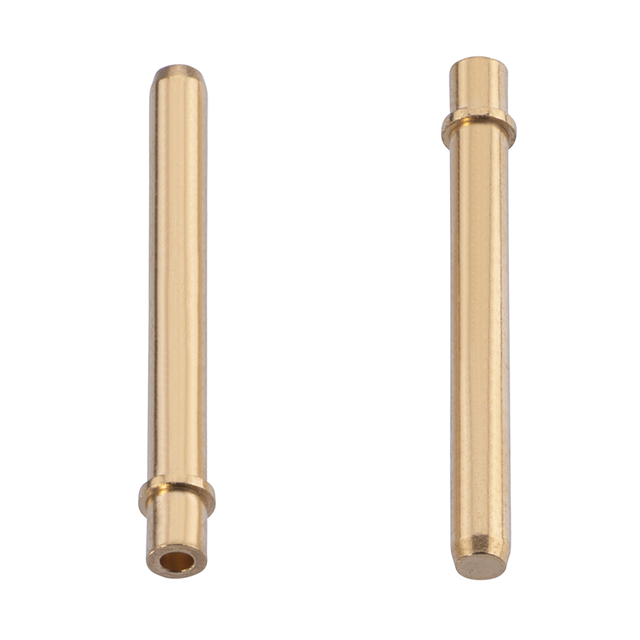

H2184-05
Or copy the link below:
- Mfr.Part #
- H2184-05
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- CONN PIN 1.75MM DIA GOLD 15.3MM
- Stock
- 787
- In Stock ：
- 787
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- PC Pin, Single Post Connectors
- Contact Material :
- Brass
- Package :
- Bag
- Terminal Type :
- PC Pin
- Material - Insulation :
- -
- Termination :
- Swage
- Product Status :
- Active
- Pin Size - Below Flange :
- 0.070 (1.78mm) Dia
- Contact Plating :
- Gold
- Flange Diameter :
- 0.089 (2.25mm)
- Length - Below Flange :
- 0.077 (1.95mm)
- Insulation :
- Non-Insulated
- Insulation Color :
- -
- Contact Finish Thickness :
- -
- RoHS :
- Details
- Pin Size - Above Flange :
- 0.070 (1.78mm) Dia
- Mounting Hole Diameter :
- 0.071 ~ 0.075 (1.80mm ~ 1.90mm)
- Terminal Style :
- Single End
- Minimum Operating Temperature :
- - 40 C
- Product :
- Wire to Board Terminals
- Length - Above Flange :
- 0.602 (15.30mm)
- Mounting Type :
- Through Hole
- Mounting Angle :
- Vertical
- Gender :
- Male
- Maximum Operating Temperature :
- + 105 C
- Mounting Hole Dia :
- 1.9mm
- Series :
- -
- Contact Finish :
- Gold
- Board Thickness :
- 0.063 (1.60mm)
- Length - Overall :
- 0.695 (17.65mm)
- Length :
- 17.65 mm
- Base Product Number :
- H2184
- Datasheets
- H2184-05
