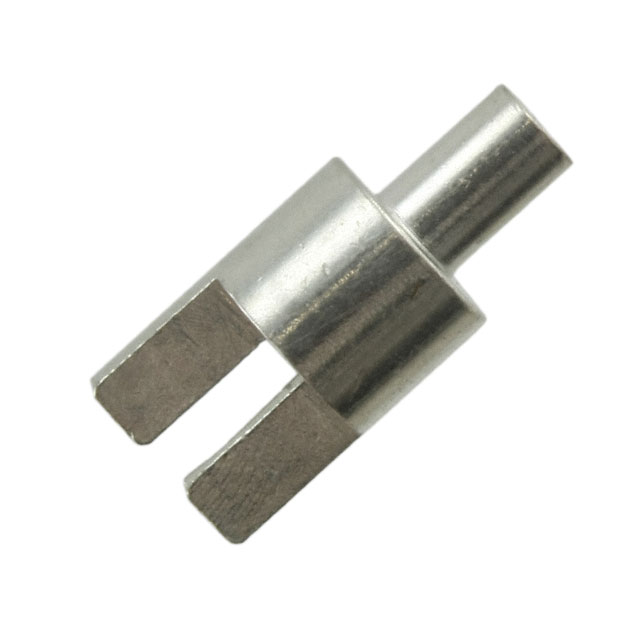

H2051-01
Or copy the link below:
- Mfr.Part #
- H2051-01
- Manufacturer
- Harwin
- Package / Case
- Datasheet
- Download
- Description
- TERM TURRET HOLLOW L=4.78MM TIN
- Stock
- 3,873
- In Stock ：
- 3,873
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Harwin
- Product Category :
- Turret Connectors
- Terminal Type :
- Single End, Fork, Hollow
- Connector Type :
- Turret
- Length :
- 7.17mm
- Pbfree Code :
- yes
- Number of Turrets :
- Single
- Terminal and Terminal Block Type :
- PCB TERMINAL
- Depth :
- 3.18mm
- Staking Side OD :
- 0.057 ~ 0.063 (1.45mm ~ 1.59mm)
- Termination :
- Swage
- Contact Material :
- Brass Alloy
- Mount :
- Through Hole
- Published :
- 2009
- Hole Diameter :
- 1.68 mm
- Factory Lead Time :
- 9 Weeks
- Flange Diameter :
- 0.125 (3.18mm)
- Contact Plating :
- Tin
- Outside Diameter :
- 3.18 mm
- Radiation Hardening :
- No
- REACH SVHC :
- No SVHC
- Mounting Hole Diameter :
- 0.063 ~ 0.066 (1.60mm ~ 1.68mm)
- Board Thickness :
- 0.063 1.60mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- HTS Code :
- 8536.90.40.00
- RoHS Status :
- ROHS3 Compliant
- ECCN Code :
- EAR99
- Lead Length :
- 4.8mm
- Length - Below Flange :
- 0.089 ~ 0.094 2.26mm ~ 2.39mm
- Length - Above Board :
- 0.188 4.78mm
- Mounting Type :
- Through Hole
- Staking Side ID :
- 0.040 ~ 0.043 (1.02mm ~ 1.09mm)
- Body Material :
- Brass
- Insulation :
- Non-Insulated
- Gender :
- FEMALE
- Datasheets
- H2051-01
