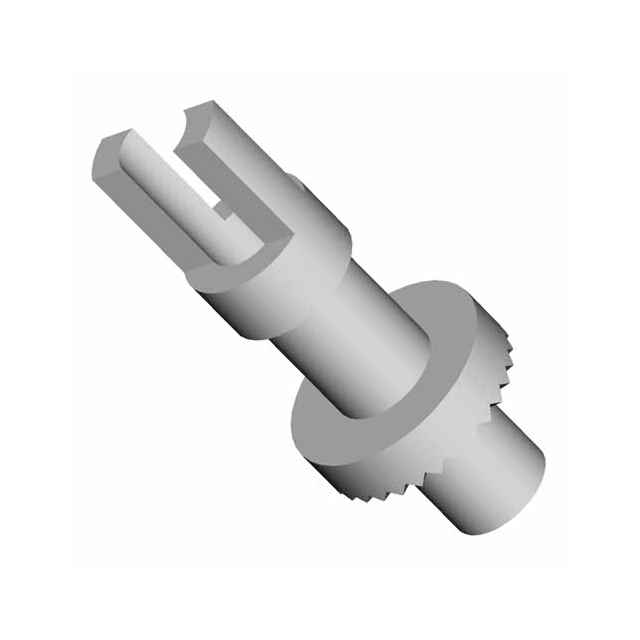

H2032-01

Manufacturer :

Harwin

Product Category :

Turret Connectors

Staking Side ID :

0.067 ~ 0.070 (1.70mm ~ 1.78mm)

Outside Diameter :

4.76 mm

Factory Lead Time :

13 Weeks

Terminal and Terminal Block Type :

PCB TERMINAL

Board Thickness :

0.063 1.60mm

Mounting Type :

Through Hole

ECCN Code :

EAR99

Termination :

Swage

Mounting Hole Diameter :

0.094 ~ 0.097 (2.39mm ~ 2.46mm)

Terminal Type :

Single End, Fork, Hollow

Length - Overall :

0.469 11.90mm

Pbfree Code :

yes

HTS Code :

8536.90.40.00

Contact Material :

Brass Alloy

Flange Diameter :

0.187 (4.75mm)

Number of Turrets :

Single

Staking Side OD :

0.091 ~ 0.094 (2.31mm ~ 2.39mm)

Length - Above Board :

0.375 9.53mm

Insulation :

Non-Insulated

Length - Below Flange :

0.094 ~ 0.099 2.39mm ~ 2.51mm

Material :

Brass

Published :

2006

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Diameter - Inside :

1.18 mm

Hole Diameter :

2.48 mm

Length :

11.9126mm

Mount :

Through Hole

Diameter - Turret Head :

0.120 ~ 0.125 (3.05mm ~ 3.18mm)

RoHS Status :

ROHS3 Compliant

Contact Finish :

Tin
