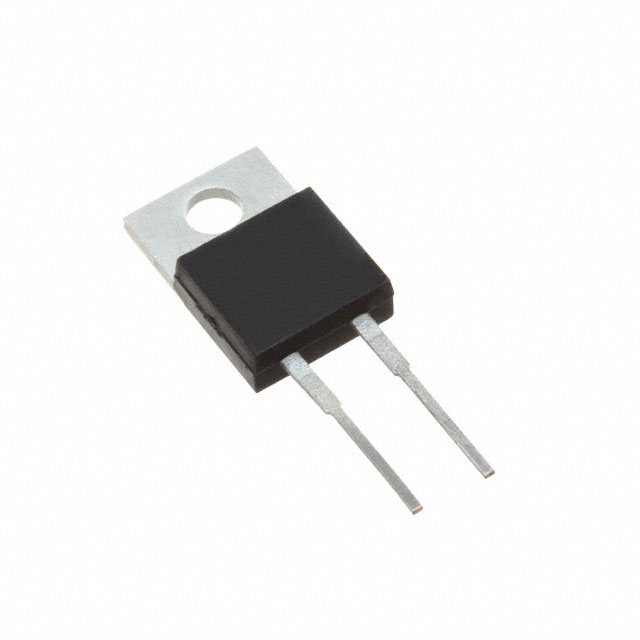

GI1401HE3/45

Manufacturer :

Vishay

Product Category :

Diodes - Rectifiers - Single

Published :

2011

Pbfree Code :

yes

Min Operating Temperature :

-65°C

Max Operating Temperature :

150°C

Reverse Recovery Time :

35 ns

Additional Feature :

FREE WHEELING DIODE, LOW LEAKAGE CURRENT, HIGH RELIABILITY

Number of Elements :

1

Mounting Type :

Through Hole

RoHS Status :

ROHS3 Compliant

Terminal Finish :

Matte Tin (Sn)

Case Connection :

CATHODE

Peak Reverse Current :

5μA

Voltage - Forward (Vf) (Max) @ If :

975mV @ 8A

Number of Pins :

2

Recovery Time :

35 ns

Mount :

Through Hole

Forward Current :

8A

Package / Case :

TO-220-2

Max Surge Current :

125A

Radiation Hardening :

No

Number of Phases :

1

Operating Temperature - Junction :

-65°C~150°C

Diode Element Material :

SILICON

Pin Count :

3

Reverse Voltage :

50V

Factory Lead Time :

20 Weeks

Average Rectified Current :

8A

Packaging :

Tube

Application :

EFFICIENCY

Current - Reverse Leakage @ Vr :

5µA @ 50V

Max Repetitive Reverse Voltage (Vrrm) :

50V

Diode Type :

Standard

Max Reverse Voltage (DC) :

50V

Element Configuration :

Single

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Peak Non-Repetitive Surge Current :

125A

HTS Code :

8541.10.00.80

ECCN Code :

EAR99

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

JESD-609 Code :

e3

Output Current-Max :

8A

Number of Terminations :

2
