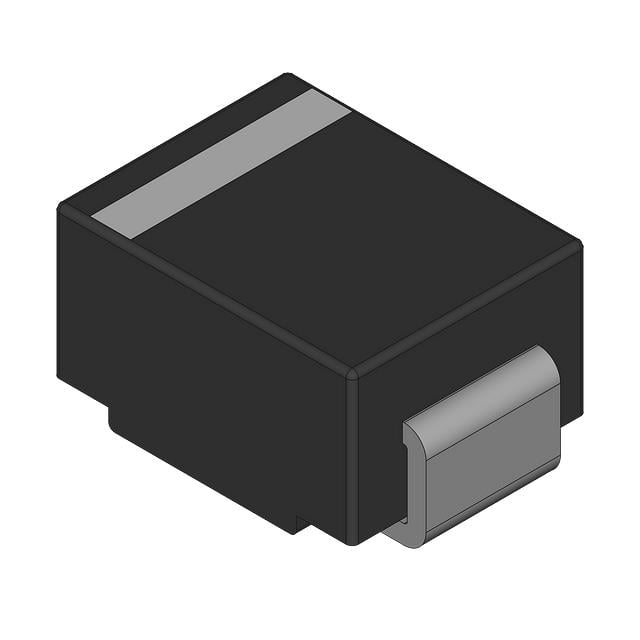

GF1M

Manufacturer :

Fairchild Semiconductor

Product Category :

Diodes - Rectifiers - Single

Lead Free :

Lead Free

Current Rating :

1A

Base Part Number :

GF1M

Height :

2.2mm

Number of Terminations :

2

Factory Lead Time :

10 Weeks

Min Operating Temperature :

-65°C

REACH SVHC :

No SVHC

Voltage - Rated DC :

1kV

Package / Case :

DO-214AC, SMA

Diode Type :

Standard

HTS Code :

8541.10.00.80

Max Forward Surge Current (Ifsm) :

30A

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

Max Surge Current :

30A

Peak Reverse Current :

5μA

Terminal Form :

C BEND

Terminal Position :

Dual

RoHS Status :

ROHS3 Compliant

Published :

2001

Radiation Hardening :

No

Recovery Time :

2 μs

Average Rectified Current :

1A

Packaging :

Tape and Reel (TR)

Diode Element Material :

SILICON

Element Configuration :

Single

Mount :

Surface Mount

Forward Current :

1A

Power Dissipation :

1.8W

Max Repetitive Reverse Voltage (Vrrm) :

1kV

Voltage - Forward (Vf) (Max) @ If :

1.2V @ 1A

Weight :

106mg

Voltage - DC Reverse (Vr) (Max) :

1000V

Output Current :

1A

Operating Temperature - Junction :

-65°C~175°C

Speed :

Standard Recovery >500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr :

5µA @ 1000V

Max Operating Temperature :

175°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Capacitance :

15pF

ECCN Code :

EAR99

Reverse Voltage :

1kV

Length :

4.75mm

Width :

2.95mm

JESD-609 Code :

e3

Peak Non-Repetitive Surge Current :

30A

Forward Voltage :

1.2V

Reverse Recovery Time :

2 μs

Number of Pins :

2

Max Reverse Voltage (DC) :

1kV

Capacitance @ Vr, F :

15pF @ 4V 1MHz

Terminal Finish :

Tin (Sn)

Mounting Type :

Surface Mount

Pbfree Code :

yes

Number of Elements :

1
