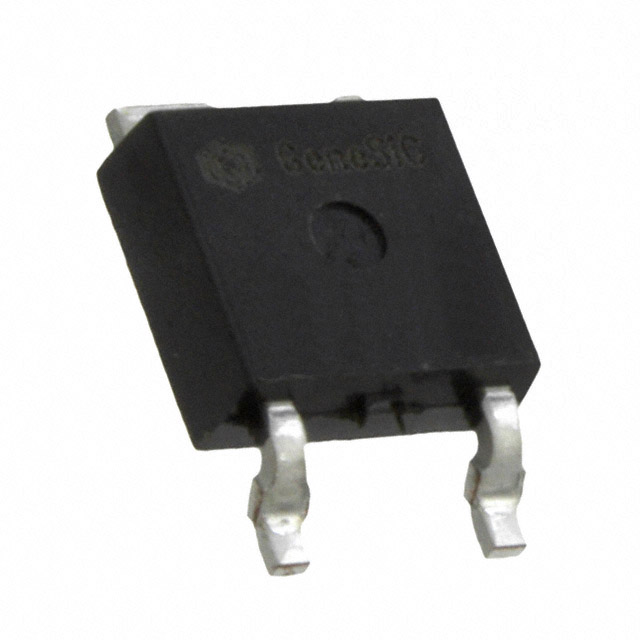

GB01SLT12-252

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Single

Max Surge Current :

10A

Package / Case :

TO-252-3, DPak (2 Leads + Tab), SC-63

Current - Reverse Leakage @ Vr :

2μA @ 1200V

Min Operating Temperature :

-55°C

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Number of Pins :

3

Published :

2015

Mounting Type :

Surface Mount

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Speed :

No Recovery Time > 500mA (Io)

Terminal Form :

Gull wing

Number of Terminations :

2

Capacitance @ Vr, F :

69pF @ 1V 1MHz

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-30 Code :

R-PSSO-G2

Packaging :

Cut Tape (CT)

Average Rectified Current :

1A

Number of Elements :

1

Voltage - DC Reverse (Vr) (Max) :

1200V

Max Power Dissipation :

42W

Max Forward Surge Current (Ifsm) :

65A

Element Configuration :

Single

Additional Feature :

PD-CASE

REACH SVHC :

No SVHC

Max Junction Temperature (Tj) :

175°C

Max Reverse Voltage (DC) :

1.2kV

Max Repetitive Reverse Voltage (Vrrm) :

1.2kV

Height :

2.507mm

Forward Current :

6A

Voltage - Forward (Vf) (Max) @ If :

1.8V @ 1A

Pbfree Code :

yes

ECCN Code :

EAR99

Mount :

Surface Mount

Factory Lead Time :

35 Weeks

Reverse Recovery Time :

0ns

Operating Temperature - Junction :

-55°C~175°C

Recovery Time :

17 ns

RoHS Status :

RoHS Compliant

Diode Type :

Silicon Carbide Schottky

Max Operating Temperature :

175°C

Max Reverse Leakage Current :

4μA

Lifecycle Status :

PRODUCTION (Last Updated: 6 months ago)

Case Connection :

CATHODE

Peak Reverse Current :

1μA
