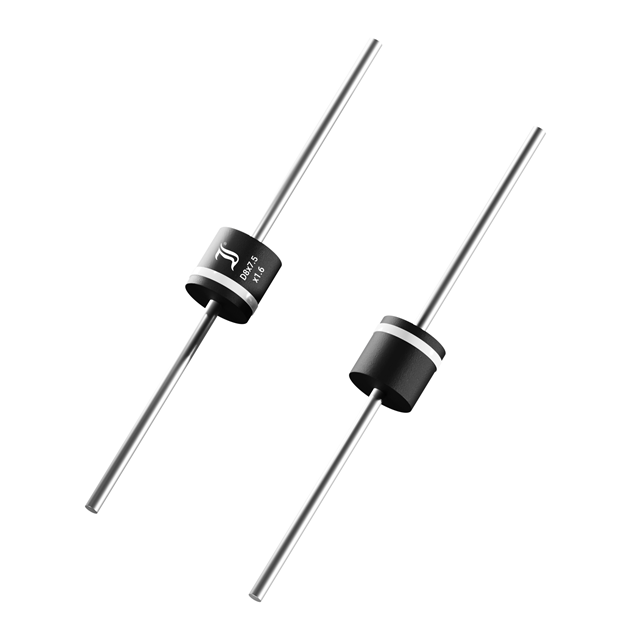

FX2000A

Manufacturer :

Diotec Semiconductor

Product Category :

Diodes - Rectifiers - Single

Package Length :

7.5

Application :

GENERAL PURPOSE

Type :

Switching Diode

Number of Terminals :

2

Peak Reverse Current (uA) :

5

Non-rep Pk Forward Current-Max :

390 A

Maximum Operating Temperature (°C) :

200

Diode Element Material :

SILICON

Output Current-Max :

20 A

JESD-30 Code :

O-PALF-W2

Reverse Recovery Time-Max :

0.2 μs

Number of Phases :

1

Terminal Position :

Axial

HTS Code :

8541.10.00.80

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Configuration :

Single

Reach Compliance Code :

Compliant

ECCN (US) :

EAR99

Peak Forward Voltage (V) :

0.94

Rep Pk Reverse Voltage-Max :

50 V

Supplier Package :

Case P-600

Mounting :

Through Hole

PCB changed :

2

Pin Count :

2

Package Shape :

Round

RoHS Status :

Yes with exemptions

Qualification Status :

Not Qualified

Military :

No

AEC Qualified :

yes

Surface Mount :

No

Terminal Form :

Wire

Minimum Operating Temperature (°C) :

-50

Peak Reverse Recovery Time (ns) :

200

Number of Elements :

1

Peak Reverse Repetitive Voltage (V) :

50

HTS :

8541.10.00.80

ECCN Code :

EAR99

Peak Non-Repetitive Surge Current (A) :

715

Packaging :

Ammo

Case Connection :

Isolated

Subcategory :

Rectifier Diodes

Maximum Continuous Forward Current (A) :

20@Ta=50C

Manufacturer :

Diotec Semiconductor AG

Diameter :

8

Diode Type :

RECTIFIER DIODE
