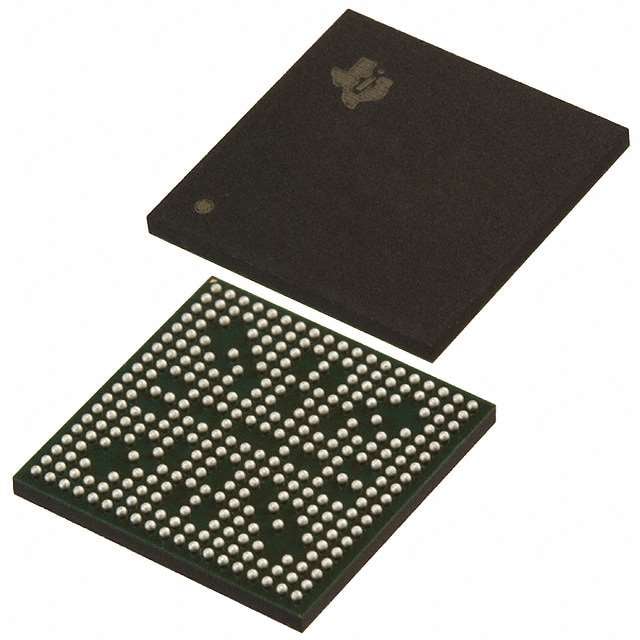

FX053013

Manufacturer :

Texas Instruments

Product Category :

Microprocessors

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Additional Interfaces :

CAN, I2C, McASP, McSPI, MMC/SD/SDIO, UART

Boundary Scan :

yes

Security Features :

Cryptography, Random Number Generator

Series :

C6-Integra™, DaVinci™, Sitara™

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Core Processor :

ARM® Cortex®-A8

Low Power Mode :

yes

Height Seated (Max) :

1.3mm

Display & Interface Controllers :

LCD, Touchscreen

Graphics Acceleration :

yes

Terminal Position :

BOTTOM

External Data Bus Width :

16

JESD-30 Code :

S-PBGA-B298

Peak Reflow Temperature (Cel) :

260

Terminal Form :

Ball

JESD-609 Code :

e1

uPs/uCs/Peripheral ICs Type :

MICROPROCESSOR, RISC

Voltage - I/O :

1.8V 3.3V

Package / Case :

298-LFBGA

Base Part Number :

FX05

Ethernet :

10/100/1000Mbps (2)

Number of Terminations :

298

Factory Lead Time :

6 Weeks

Integrated Cache :

yes

Length :

13mm

Format :

FIXED POINT

Pbfree Code :

yes

Number of UART Channels :

6

USB :

USB 2.0 + PHY (2)

RAM Controllers :

DDR2, DDR3, DDR3L, LPDDR

Operating Temperature :

0°C~90°C

Surface Mount :

yes

Lead Free :

Lead Free

Packaging :

Tray

Co-Processors/DSP :

Multimedia; NEON™ SIMD

Speed :

300MHz

Bit Size :

32

RoHS Status :

ROHS3 Compliant

Number of Cores/Bus Width :

1 Core 32-Bit

Address Bus Width :

16
