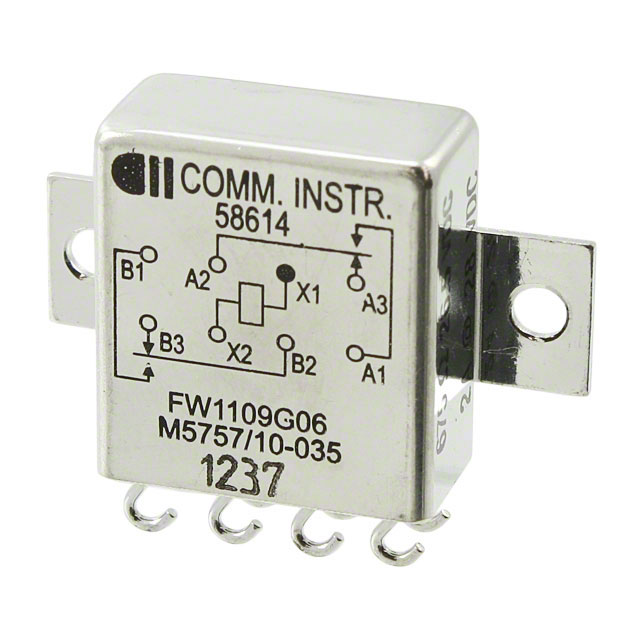

FW1109G06
Or copy the link below:
- Mfr.Part #
- FW1109G06
- Manufacturer
- TE Connectivity Aerospace Defense and Marine
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOS DPDT 2A 26.5VDC
- Stock
- 22,015
- In Stock ：
- 22,015
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity Aerospace Defense and Marine
- Product Category :
- Signal Relays, Up to 2 Amps
- Body Length or Diameter :
- 20.32mm
- Physical Dimension :
- 20.32mm x 10.16mm x 22.86mm
- Release Time :
- 6 ms
- Coil Power :
- 1033.5mW
- Coil Type :
- Non Latching
- Termination Style :
- Solder Hook
- Coil Voltage :
- 26.5VDC
- Body Breadth :
- 10.16 mm
- Operate Time :
- 5ms
- Must Operate Voltage :
- 13.5VDC
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Form :
- DPDT (2 Form C)
- Relay Action :
- Momentary
- Series :
- Military, MIL-R-5757/10, FW, CII
- Published :
- 2000
- Packaging :
- Bulk
- ECCN Code :
- EAR99
- Surface Mount :
- No
- Switching Voltage :
- 28VDC - Nom
- Mounting Feature :
- Panel Mount
- Mounting Type :
- Chassis Mount
- Coil Resistance :
- 675Ohm
- Relay Type :
- GENERAL PURPOSE
- Coil/Input Supply Type :
- DC
- Contact/Output Supply Type :
- DC
- Contact Rating (Current) :
- 2A
- Contact Voltage(DC)-Max :
- 28V
- Factory Lead Time :
- 26 Weeks
- Body Height :
- 22.86mm
- Electrical Life :
- 100000 Cycle(s)
- HTS Code :
- 8536.41.00.20
- RoHS Status :
- Non-RoHS Compliant
- Coil Current(DC)-Max :
- 0.039A
- Operating Temperature :
- -65°C~125°C
- Datasheets
- FW1109G06
FW1109G06 datasheet pdf and Signal Relays, Up to 2 Amps product details from TE Connectivity Aerospace, Defense and Marine stock available at
