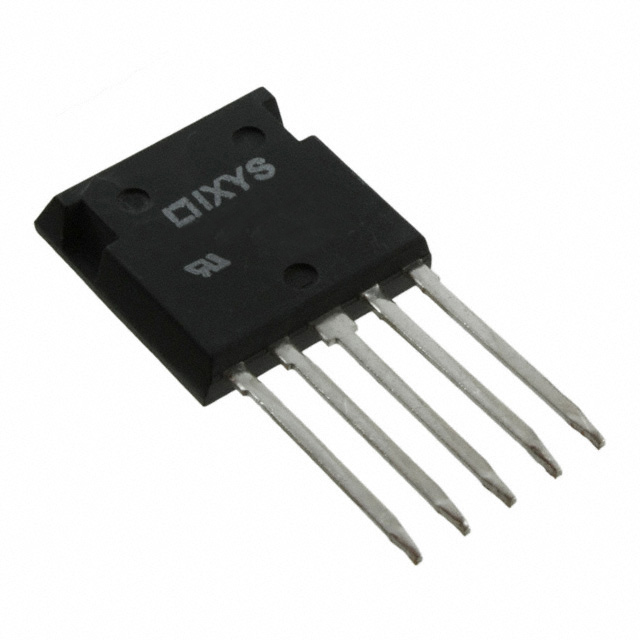

FUO50-16N

Manufacturer :

Littelfuse

Product Category :

Diodes - Bridge Rectifiers

Voltage - Peak Reverse (Max) :

1.6kV

Mounting Type :

Through Hole

Number of Pins :

5

Product Status :

Active

Operating Temperature Classification :

Military

HTS Code :

8541.10.00.80

Average Rectified Current :

50A

Termination Style :

Solder Lead

RoHS Status :

ROHS3 Compliant

Diode Element Material :

SILICON

Peak Rep Rev Volt :

1600(V)

Maximum Operating Temperature :

+ 175 C

Lead Free :

Lead Free

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Length :

20.29mm

Supplier Device Package :

ISOPLUS i4-PAC™

Forward Current :

50A

Peak Non-Repetitive Surge Current (Max) :

290(A)

Number of Elements :

1

JESD-30 Code :

R-PSIP-T5

Width :

5.21mm

Brand :

IXYS

Surface Mount :

No

RoHS :

Details

Type :

Three Phase Bridge

Max Reverse Leakage Current :

1mA

Configuration :

BRIDGE, 6 ELEMENTS

Minimum Operating Temperature :

- 55 C

Power Dissipation :

70W

Current - Average Rectified (Io) :

50A

Max Forward Surge Current (Ifsm) :

200A

Package Type :

ISOPLUS i4-Pac

Operating Temperature :

-55°C~175°C TJ

Max Surge Current :

270A

Non-rep Pk Forward Current-Max :

200 A

Height :

21.34mm

Element Configuration :

Single

Rad Hardened :

No

Terminal Form :

THROUGH-HOLE

Mounting Style :

Through Hole

Reach Compliance Code :

Compliant

Additional Feature :

HIGH RELIABILITY, UL RECOGNIZED

Peak Reverse Current :

10μA

Base Product Number :

FUO50

Rev Curr :

20(mA)

Case Connection :

Isolated

Peak Non-Repetitive Surge Current :

290A

Output Current-Max :

20A

Packaging :

Tube

Max Repetitive Reverse Voltage (Vrrm) :

1.6kV

Number of Terminations :

5

Vf - Forward Voltage :

1.04 V

Series :

--

Voltage - Forward (Vf) (Max) @ If :

1.15V @ 15A

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pin Count :

5

Product Category :

Bridge Rectifiers

Product Type :

Bridge Rectifiers

Forward Voltage :

1.3V

Manufacturer :

IXYS

Published :

2004

Pbfree Code :

yes

Mount :

Through Hole

Mounting :

Through Hole

Terminal Finish :

Tin/Silver/Copper (Sn/Ag/Cu)

Package :

Tube

Number of Phases :

3

Number of Terminals :

5

Phase Type :

Three Phase

Operating Temp Range :

-55C to 175C

Package Shape :

RECTANGULAR

Rep Pk Reverse Voltage-Max :

1600 V

Current - Reverse Leakage @ Vr :

20μA @ 1600V

Package / Case :

i4-Pac™-5

JESD-609 Code :

e1

Factory Lead Time :

8 Weeks

Avg. Forward Curr (Max) :

50(A)

Diode Type :

Three Phase

Terminal Position :

Single

Qualification Status :

Not Qualified
