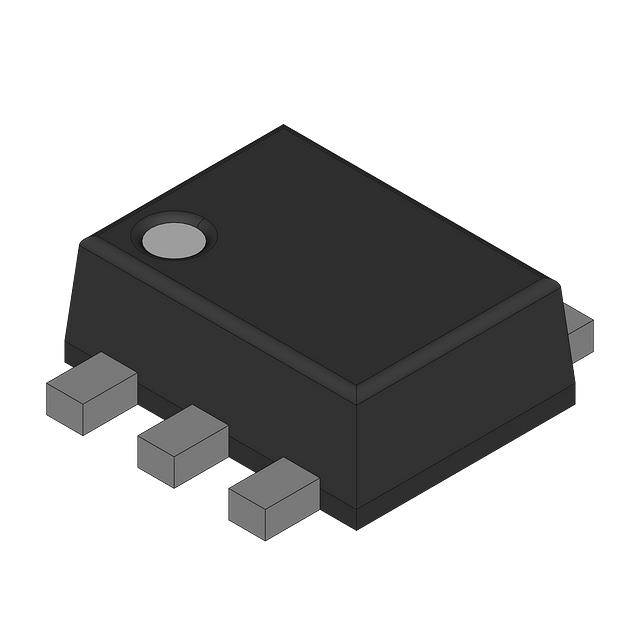

FT7511L6X

Manufacturer :

Fairchild Semiconductor

Product Category :

Supervisors

Number of Timers/Counters :

1

Factory Lead Time :

6 Weeks

Max Supply Voltage :

5V

Reset :

Active Low

RoHS Status :

ROHS3 Compliant

Number of Pins :

6

Low Level Output Current :

500μA

ECCN Code :

EAR99

Terminal Position :

Dual

Published :

2016

Quiescent Current :

1μA

Terminal Form :

NO LEAD

Number of Terminations :

6

Lifecycle Status :

LAST SHIPMENTS (Last Updated: 4 days ago)

Terminal Pitch :

0.5mm

Weight :

30g

Max Power Dissipation :

5mW

Type :

Reset Timer

Package / Case :

6-UFDFN

Width :

1mm

Length :

1.45mm

Nominal Supply Current :

100μA

Pbfree Code :

yes

Operating Temperature :

-40°C~85°C TA

Propagation Delay :

9 s

Base Part Number :

FT7511

Output :

Open Drain or Open Collector

Reset Timeout :

60ms Minimum

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Power Dissipation :

5mW

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Packaging :

Tape and Reel (TR)

Turn On Delay Time :

9 ns

Height :

500μm

Min Supply Voltage :

1.8V

JESD-609 Code :

e4

Mounting Type :

Surface Mount

High Level Output Current :

-50mA

Terminal Finish :

Nickel/Palladium (Ni/Pd)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mount :

Surface Mount
