FT220XQ-T
Or copy the link below:
- Mfr.Part #
- FT220XQ-T
- Manufacturer
- Future Technology Devices International, Ltd.
- Package / Case
- 16-WQFN Exposed Pad
- Datasheet
- Download
- Description
- IC USB 4 BIT SPI/FT1248 16QFN
- Stock
- 14,147
- In Stock ：
- 14,147
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Future Technology Devices International, Ltd.
- Product Category :
- Controllers
- Number of Pins :
- 16
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Voltage - Supply :
- 3.3V~5V
- Package / Case :
- 16-WQFN Exposed Pad
- Width :
- 4mm
- Terminal Position :
- QUAD
- Operating Supply Current :
- 10.5mA
- Operating Supply Voltage :
- 5V
- Published :
- 2006
- RoHS Status :
- RoHS Compliant
- Terminal Form :
- NO LEAD
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Lead Free :
- Lead Free
- Interface :
- FT1248
- Packaging :
- Tray
- Qualification Status :
- Not Qualified
- Operating Temperature :
- -40°C~85°C
- Supply Voltage :
- 5V
- Factory Lead Time :
- 11 Weeks
- Series :
- USBmadeEZ-FIFO, FT-X, X-Chip
- Moisture Sensitivity Level (MSL) :
- 3 (168 Hours)
- Surface Mount :
- yes
- Length :
- 4mm
- Data Rate :
- 500 kbps
- Terminal Pitch :
- 0.65mm
- Protocol :
- USB
- Function :
- Bridge, USB to FT1248
- Number of Terminations :
- 16
- uPs/uCs/Peripheral ICs Type :
- MICROPROCESSOR CIRCUIT
- Standards :
- USB 2.0
- Number of Channels :
- 1
- Datasheets
- FT220XQ-T
/MFG_FT220XQ.jpg)

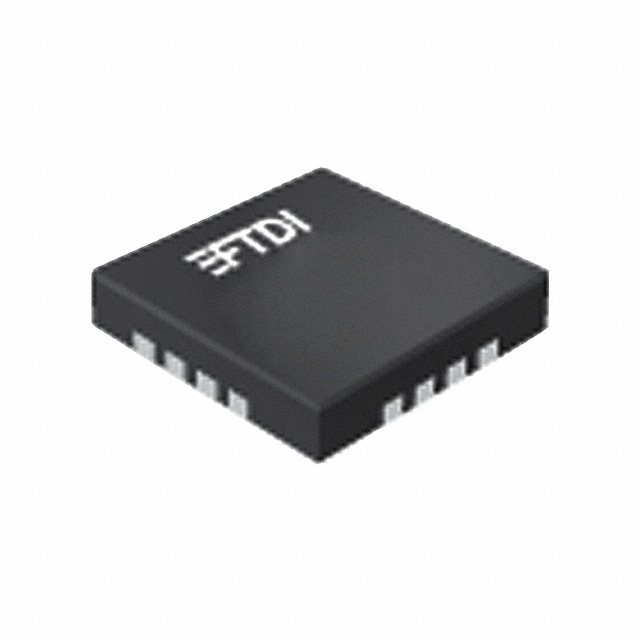

Controllers Future Technology Devices International, Ltd. FT220XQ-T Overview
The Controllers Future Technology Devices International, Ltd. FT220XQ-T is a highly versatile and compact integrated circuit designed for USB communication. Ideal for developers looking to integrate USB interfaces into their designs without the need for extensive firmware development, the FT220XQ-T simplifies the process with its robust feature set and small form factor. This USB to 4-bit SPI/FT1248 bridge in a 16QFN package offers an excellent solution for applications requiring reliable data transfer through USB with minimal latency and power consumption. Its ease of implementation and compatibility make it an optimal choice for bulk purchasing by businesses aiming to enhance or develop new electronic products.
FT220QX-T Features
This integrated circuit provides robust USB interfacing capability, supporting USB 2.0 Full Speed compatibility, and includes features such as an integrated clock generator and an onboard power-on reset circuit. Its ability to handle interface data rates of up to 12 Mbps, alongside an integrated 2048 byte multi-time-programmable (MTP) memory for storing device descriptors and configurations, makes it exceptionally efficient for rapid development cycles and reducing external component needs.
FT220QX-T Applications
- Industrial Control Systems: The FT220XQ-T can be utilized to enable USB communication for sensors and actuators, facilitating easy and rapid data transfer to control systems or PCs.
- Consumer Electronics: Utilized in gadgets like gaming accessories, where its high-speed SPI interface enables quick response times and smooth handling of user inputs.
- PC Peripherals: Ideal for developing USB-connected devices such as keyboards, mice, and webcams, providing a straightforward interface solution without complex hardware setup.
- Medical Devices: Can be integrated into medical diagnostics equipment, where reliable and efficient USB communication is crucial for data logging and analysis tasks.
- Automotive Modules: Suitable for use in automotive applications, where it can facilitate communication between different electronic modules via USB, enhancing diagnostics and module interfacing.
