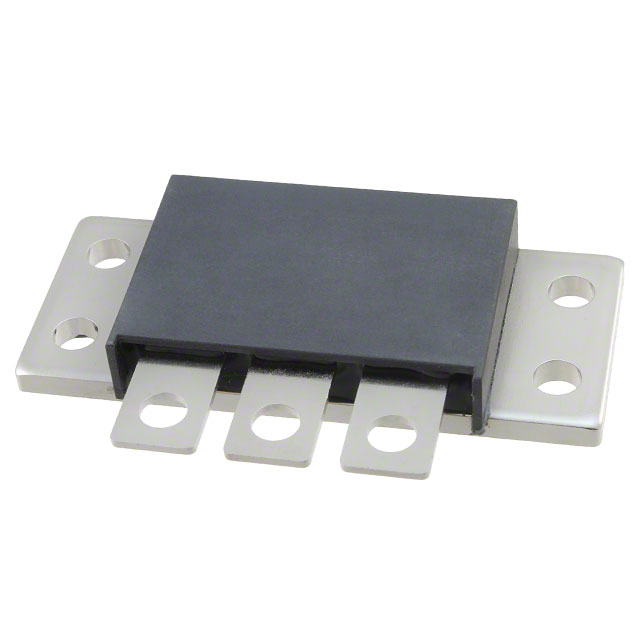

FST10080

Manufacturer :

GeneSiC Semiconductor

Product Category :

Diodes - Rectifiers - Arrays

Number of Elements :

2

Package / Case :

TO-249AB

Max Surge Current :

1kA

Forward Current :

100A

Voltage - Forward (Vf) (Max) @ If :

840mV @ 100A

Max Operating Temperature :

125°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Mounting Type :

Chassis Mount

Packaging :

Bulk

Peak Reverse Current :

1A

Speed :

Fast Recovery =< 500ns, > 200mA (Io)

Terminal Form :

Solder Lug

Mount :

Chassis Mount

Average Rectified Current :

100A

Diode Configuration :

1 Pair Common Cathode

Lifecycle Status :

PRODUCTION (Last Updated: 6 months ago)

Element Configuration :

Common Cathode

Terminal Position :

Single

Number of Terminations :

3

RoHS Status :

RoHS Compliant

Number of Phases :

1

Max Reverse Leakage Current :

1μA

Diode Type :

Schottky

Current - Reverse Leakage @ Vr :

2mA @ 20V

Output Current-Max :

50A

JESD-30 Code :

R-PSFM-D3

Application :

Power

Published :

2010

Operating Temperature - Junction :

-55°C~150°C

Factory Lead Time :

6 Weeks

Min Operating Temperature :

-40°C

Case Connection :

Isolated

Pbfree Code :

yes

Max Repetitive Reverse Voltage (Vrrm) :

80V

Diode Element Material :

SILICON

Max Reverse Voltage (DC) :

80V
