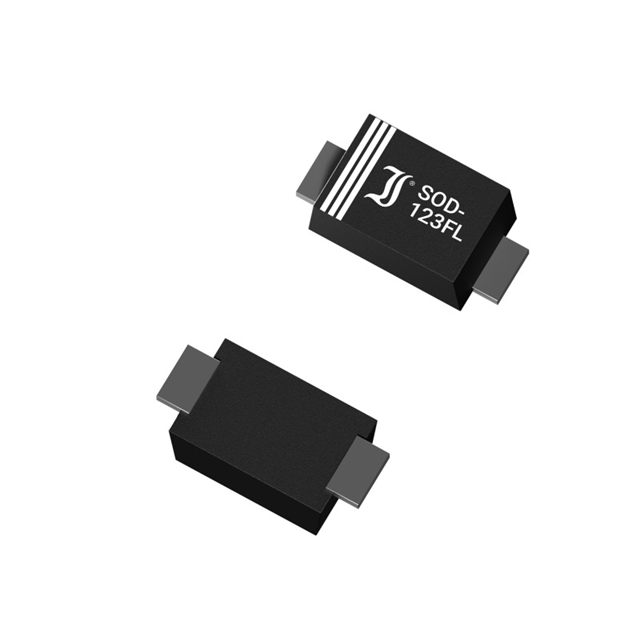

FRL1G
- Mfr.Part #
- FRL1G
- Manufacturer
- Diotec Semiconductor
- Package / Case
- Datasheet
- Download
- Description
- Fast Rect. 400V, 1.00A, 150ns
- Stock
- 18,243
- In Stock :
- 18,243
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Diotec Semiconductor
- Product Category :
- Diodes - Rectifiers - Single
- Maximum Continuous Forward Current (A) :
- 1@Ta=50C
- Standard Package Name :
- SOD
- Package Height :
- 1.3
- Package Shape :
- RECTANGULAR
- Rep Pk Reverse Voltage-Max :
- 400 V
- Peak Reverse Repetitive Voltage (V) :
- 400
- Additional Feature :
- SNUBBER DIODE
- Manufacturer :
- Diotec Semiconductor AG
- HTS :
- 8541.10.00.80
- Output Current-Max :
- 1 A
- Configuration :
- Single
- Maximum Operating Temperature (°C) :
- 150
- Packaging :
- Tape and Reel
- Military :
- No
- Package Width :
- 1.8
- JESD-30 Code :
- R-PDSO-F2
- Diode Type :
- RECTIFIER DIODE
- PCB changed :
- 2
- Terminal Position :
- Dual
- ECCN (US) :
- EAR99
- Mounting :
- Surface Mount
- Package Length :
- 2.8
- RoHS Status :
- Yes with exemptions
- Terminal Form :
- Flat
- Reach Compliance Code :
- Compliant
- Type :
- Switching Diode
- Number of Elements :
- 1
- Diode Element Material :
- SILICON
- ECCN Code :
- EAR99
- Peak Non-Repetitive Surge Current (A) :
- 30
- Peak Reverse Recovery Time (ns) :
- 150
- Supplier Temperature Grade :
- COMMERCIAL
- Reverse Recovery Time-Max :
- 0.15 μs
- Surface Mount :
- yes
- Minimum Operating Temperature (°C) :
- -50
- Number of Terminals :
- 2
- Peak Forward Voltage (V) :
- 1.3
- Peak Reverse Current (uA) :
- 5
- Pin Count :
- 2
- Supplier Package :
- SOD-123FL
- Datasheets
- FRL1G
FRL1G Documents

RECTIFIER DIODE SILICON DUAL Tape and Reel
FRL1G Overview
The peak forward voltage is 1.3 in the datasheets.A continuous forward current of about 1@Ta=50C is consumed by this device at all times.By using this device, it's possible to read a maximum output current voltage of 1 A.
FRL1G Features
the forward peak voltage is 1.3
a maximum output current voltage of 1 A
FRL1G Applications
There are a lot of Diotec Semiconductor AG
FRL1G applications of RF diodes.
- Wearables
- Smart metering
- Set top boxes
- RF attenuators and switches
- Low-loss, high-power limiters
- Receiver protectors
- UHF mixer
- Sampling circuits
- Modulators
- Phase detection
